1. Giới thiệu
This manual provides detailed instructions for the assembly, operation, and maintenance of your Garvee R1 Recliner Chair. Please read this manual thoroughly before use to ensure proper setup and safe operation. Retain this manual for future reference.
2. Thông tin an toàn
Hướng dẫn an toàn quan trọng:
- Always ensure the chair is placed on a flat, stable surface.
- Keep hands and feet clear of the reclining mechanism when adjusting the chair to prevent injury.
- Không cho trẻ em chơi trên hoặc xung quanh ghế ngả mà không có người giám sát.
- Do not stand on the footrest or armrests.
- The maximum weight capacity for this recliner is 300 pounds. Do not exceed this limit.
- Avoid placing the chair near heat sources or in direct sunlight to prevent material damage.
- Regularly inspect all bolts and connections to ensure they are tight. Retighten as necessary.
3. Danh sách các bộ phận
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact Garvee customer support.
- Tựa lưng (1)
- Seat Base with Armrests (1)
- Chân (4)
- Bộ dụng cụ phần cứng (Bu lông, vòng đệm, cờ lê lục giác)
Image: Key components and features of the Garvee R1 Recliner Chair, including the overstuffed backrest, thickened armrest, wider and fuller cushions, and side pocket.
4. Thiết lập (Hướng dẫn lắp ráp)
Follow these steps to assemble your Garvee R1 Recliner Chair. It is recommended to have a second person assist with assembly.
Bước 1: Gắn chân
- Carefully unbox all components and lay them out on a soft, clean surface to prevent damage.
- Invert the seat base to expose the underside.
- Locate the four pre-drilled holes for the legs.
- Screw each leg into its designated hole until secure. Ensure all legs are tightly fastened.
Video: This video demonstrates the unboxing and initial assembly steps, including attaching the legs to the recliner base.
Bước 2: Gắn phần tựa lưng
- With the legs attached, carefully stand the seat base upright.
- Align the metal brackets on the backrest with the corresponding slots on the seat base.
- Slide the backrest down firmly until it clicks into place. Ensure both sides are securely engaged.
- Verify that the backrest is stable and does not wobble.
Video: Video này cung cấp mộtview of the recliner and shows the simple process of attaching the backrest to the seat base.
5. Hướng dẫn vận hành
The Garvee R1 Recliner Chair features a manual push-back reclining system, allowing for effortless adjustment to various positions.
Ngả ghế ra sau:
- Upright Position (90°): Sit comfortably with your back fully against the backrest. This position is ideal for reading or working.
- Partial Recline (120°): To recline, gently push back on the backrest with your body weight. The footrest will automatically extend. This position is suitable for watching TV or light relaxation.
- Full Recline (150°): Continue to push back on the backrest until you reach the desired full recline position. This position is perfect for napping or deep relaxation.
Image: Visual representation of the Garvee R1 Recliner Chair in its 90° (reading), 120° (watching TV), and 150° (napping) adjustable positions.
Trở lại tư thế thẳng đứng:
- To return the chair to an upright position, lean forward and gently push the footrest down with your legs until it locks into place. The backrest will simultaneously return to its upright position.
6. Bảo trì
Proper care and maintenance will extend the life of your Garvee R1 Recliner Chair.
- Vải lau: For general cleaning, vacuum the fabric regularly to remove dust and loose particles. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner according to the product instructions, testing on an inconspicuous area first.
- Khung và Cơ cấu: Periodically check all bolts and screws to ensure they are tight. Lubricate moving parts of the reclining mechanism annually with a silicone-based lubricant to ensure smooth operation.
- Tránh ánh nắng trực tiếp: Prolonged exposure to direct sunlight can cause the fabric to fade. Position your chair away from direct sunlight or use curtains/blinds.
- Tránh các hóa chất mạnh: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the fabric and finish.
KHAI THÁC. Xử lý sự cố
Nếu bạn gặp bất kỳ sự cố nào với ghế tựa của mình, hãy tham khảo các vấn đề và giải pháp thường gặp sau đây:
| Vấn đề | Nguyên nhân có thể | Giải pháp |
|---|---|---|
| Ghế không ngả ra thoải mái. | Cơ cấu bị kẹt hoặc tắc nghẽn. | Check for any obstructions around the mechanism. Apply silicone lubricant to moving parts. Ensure sufficient body weight is applied when pushing back. |
| Gác chân không giữ nguyên vị trí khi mở rộng. | Cơ cấu chưa khớp hoàn toàn hoặc lò xo bị mòn. | Ensure you are pushing back fully to lock the footrest in place. If the issue persists, contact customer support. |
| Ghế bị rung lắc hoặc không ổn định. | Chân hoặc các mối nối khung bị lỏng. | Check and tighten all leg screws and frame bolts. Ensure the chair is on an even surface. |
| Tiếng ồn bất thường trong quá trình hoạt động. | Friction in the mechanism or loose parts. | Lubricate the reclining mechanism. Check for any loose components and tighten them. |
If these solutions do not resolve the issue, please contact Garvee customer support for further assistance.
8. Thông số kỹ thuật
| Tính năng | Chi tiết |
|---|---|
| Thương hiệu | Garvee |
| Tên mẫu | R1 |
| Màu sắc | Dark Brown (as per current product variant) |
| Kích thước sản phẩm (D x R x C) | 28.3"D x 25.6"W x 39.8"H |
| Chiều cao ghế | 20 inch |
| Độ sâu ghế | 22 inch |
| Chiều dài ghế | 19 inch |
| Kiểu lưng | Lưng cao |
| Loại vải bọc | Lanh |
| Vật liệu điền | miếng bọt biển |
| Khuyến nghị trọng lượng tối đa | 300 Bảng Anh |
| Số lượng vị trí ngả | 3 Position (90°, 120°, 150°) |
| Tính năng đặc biệt | Adjustable Backrest, Ergonomic, Reclining, Side Pocket |
| Trọng lượng sản phẩm | 50 pound |

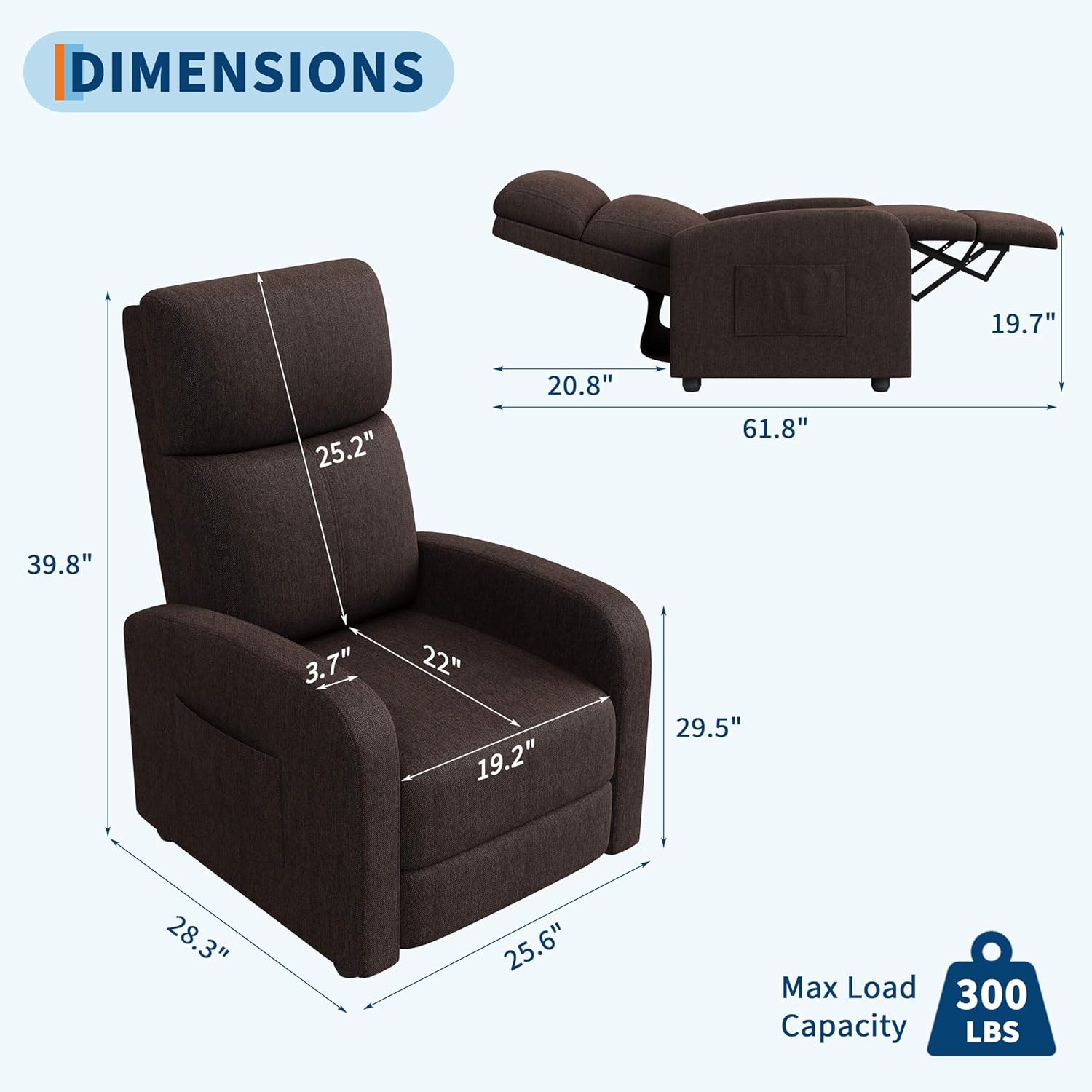

Image: Detailed dimensions of the Garvee R1 Recliner Chair in both upright and fully reclined positions, including height, width, depth, and maximum load capacity.
9. Bảo hành & Hỗ trợ
Thông tin bảo hành:
Garvee products are designed for durability and comfort. For specific warranty details regarding your R1 Recliner Chair, please refer to the warranty card included in your packaging or contact Garvee customer support.
Hỗ trợ khách hàng:
If you have any questions, require assistance with assembly, or need troubleshooting help, please contact Garvee customer support. Our team is dedicated to ensuring your satisfaction.
- Phương thức liên hệ: Refer to the contact information provided in your product packaging or visit the official Garvee webđịa điểm.
- Before Contacting: Please have your model number (R1) and purchase date available.
