1. Sản phẩm hếtview
The PGST Solar Motion Sensor Alarm E10D is a self-sustaining security device designed for outdoor use. It integrates a motion sensor, a loud siren, and a strobe light to deter intruders and alert users. Its solar-powered design ensures continuous operation without external power sources, making it suitable for various locations.
- Hoạt động bằng năng lượng mặt trời: Equipped with a high-efficiency solar panel and a rechargeable battery, it charges during the day for continuous operation.
- Cung cấp điện liên tục: Operates independently of the electrical grid, providing 24/7 protection even during power outagnghĩa là
- Effective Detection and Deterrence: Advanced PIR (Passive Infrared) motion sensors detect movement, activating a powerful 120dB siren and strobe light.
- Robust Weatherproof Construction: IP65 rated design ensures protection against dust and water, allowing reliable function in harsh weather.
- Simple Wire-Free Installation: Designed for easy setup without complex wiring, offering flexible placement options.
2. Thông tin an toàn
- Ensure the device is mounted securely to prevent falling.
- Không được tự ý tháo rời hoặc sửa đổi thiết bị, vì điều này có thể làm mất hiệu lực bảo hành và gây hư hỏng.
- Keep the solar panel clean and free from obstructions to ensure optimal charging.
- Avoid directing the siren or strobe light directly at people or animals from close range.
- Vứt bỏ pin theo quy định của địa phương.
3. Nội dung gói hàng
Xác minh rằng tất cả các mục đều có trong gói hàng:
- 1x PGST Solar Motion Sensor Alarm (Model E10D)
- 1x Điều khiển từ xa
- Phụ kiện lắp đặt (ốc vít, neo tường)
- Cáp sạc USB 1x
- 1x Hướng dẫn sử dụng
4. Tính năng
The PGST Solar Motion Sensor Alarm E10D offers a range of features for enhanced security:
- Sạc kép: Solar charging for daily power and USB charging for initial setup or low light conditions.
- Điều chỉnh âm lượng: 3 levels of volume for the alarm sound.
- Nhiều chế độ làm việc: Three distinct modes to suit different security needs (All-day, Daytime, Night).
- Báo động âm lượng cao: Produces a 120dB loud sound to effectively deter intruders.
- Phạm vi phát hiện rộng: Motion sensor covers a 110-degree angle with a range of up to 15 meters.
- Điều khiển từ xa: Conveniently arm, disarm, adjust settings, and trigger SOS from a distance.
Image: The PGST Solar Motion Sensor Alarm with its remote control, highlighting key features like solar charging, USB charging, 3-level volume, 3 working modes, IP65 waterproof rating, and 120dB sound.
Image: The alarm device shown in a rainy environment, illustrating its IP65 weatherproof capability to withstand various weather conditions.

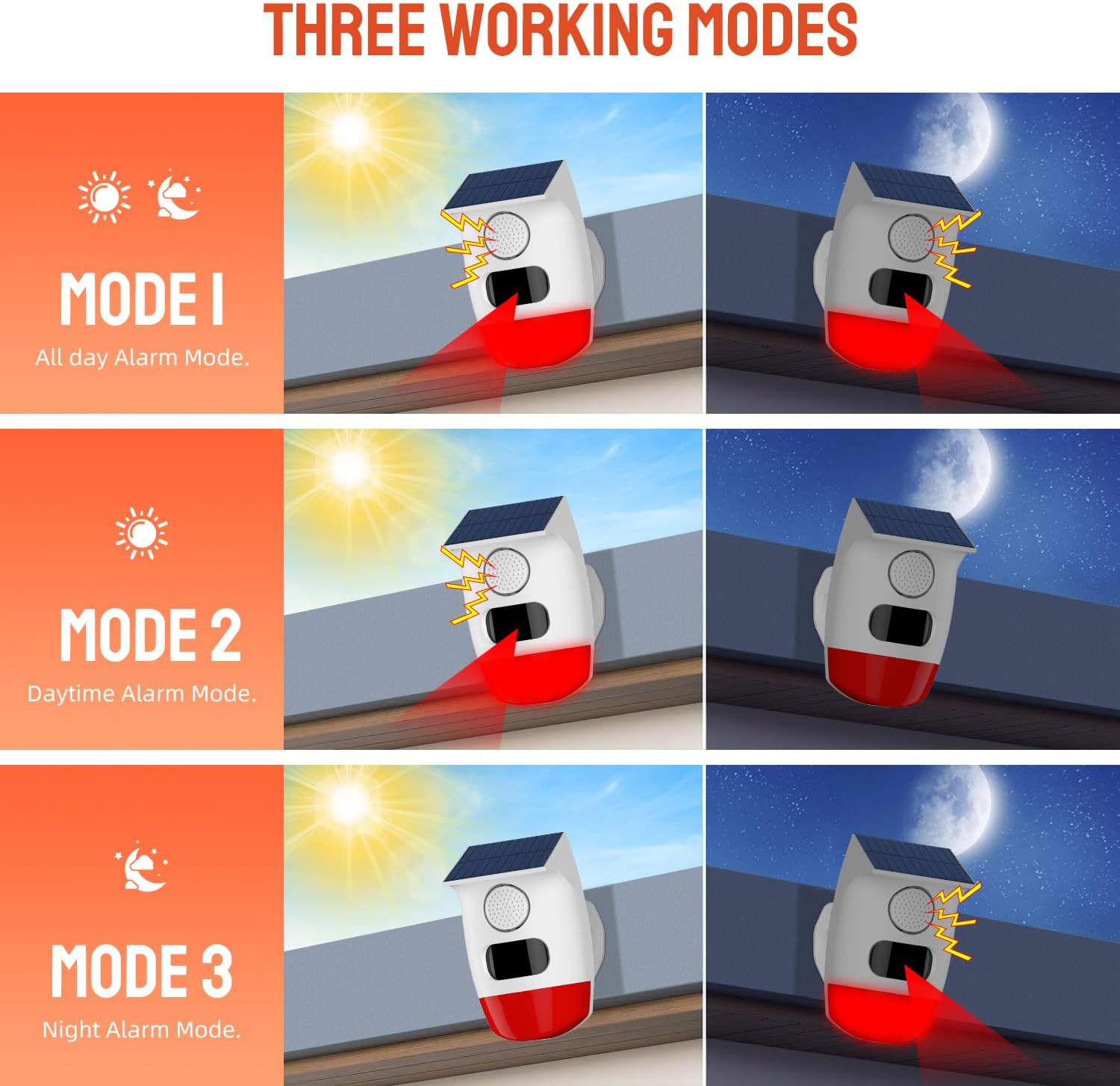

Image: A visual representation of the three working modes: Mode 1 (All-day Alarm), Mode 2 (Daytime Alarm), and Mode 3 (Night Alarm), showing how the alarm functions under different light conditions.
Image: An illustration demonstrating the alarm's 110-degree wide detection range and a detection distance of 6 meters, highlighting its panoramic coverage.
Image: The alarm device with a visual representation of its 120dB high-pitched alarm, indicating its strong deterrent effect.
Image: A hand holding the remote control, demonstrating its use for smart control functions like arm/disarm, volume levels, working modes, alarm ringtones, and sound/light on/off, with a remote range of 5 meters (16 feet).
Hình ảnh: Examples of the alarm's multipurpose use in different settings such as a garage, courtyard, indoors, and by a doorway.
5. Thiết lập
5.1 Sạc ban đầu
Before first use, it is recommended to fully charge the device. The alarm can be charged via its solar panel or using the provided USB cable.
- Sạc năng lượng mặt trời: Place the device in direct sunlight for at least 24 hours to ensure a full charge.
- Sạc USB: Connect the USB cable to the device and a 5V USB power adapter. Charge for approximately 8 hours until the charging indicator light changes (refer to device for specific indicator behavior).
5.2 Gắn thiết bị
The PGST Solar Motion Sensor Alarm is designed for wall mounting. Choose a location that receives ample sunlight for the solar panel and provides the desired detection coverage.
- Select a suitable mounting location, ensuring the solar panel faces the sun.
- Use the provided mounting accessories (screws and wall anchors) to securely attach the device to a wall or post.
- Adjust the device angle if necessary to optimize solar exposure and motion detection area.
Image: Detailed dimensions of the PGST Solar Motion Sensor Alarm and its remote control, useful for planning installation space.
6. Hoạt động
The alarm is controlled using the included remote control. Ensure you are within 5 meters (16 feet) of the device for optimal remote functionality.
6.1 Chức năng điều khiển từ xa
| Biểu tượng nút | Chức năng | Sự miêu tả |
|---|---|---|
| 🔒 | Cánh tay | Activates the alarm system. |
| 🔓 | Giải trừ vũ khí | Vô hiệu hóa hệ thống báo động. |
| SOS | Báo động SOS | Triggers an immediate alarm regardless of arm/disarm status. |
| 🔊 | Tăng âm lượng | Increases alarm volume. |
| 🔉 | Giảm âm lượng | Decreases alarm volume. |
| 🔇 | Tắt tiếng | Mutes the alarm sound. |
| 24 | Mode 1 (24-hour) | All-day alarm mode. Detects motion and alarms 24/7. |
| ☀️ | Mode 2 (Daytime) | Daytime alarm mode. Detects motion and alarms during daylight hours. |
| 🌙 | Mode 3 (Night) | Night alarm mode. Detects motion and alarms during nighttime hours. |
| 🎯 High | Độ nhạy cao | Sets motion detection sensitivity to high. |
| 🎯 Low | Độ nhạy thấp | Sets motion detection sensitivity to low. |
| 🎤 | Chuyển đổi giọng nói | Switches between different voice prompts/tones (if available). |
| ❌ Off | Alarm Sound Off | Turns off the alarm sound. |
| ✅ On | Alarm Sound On | Turns on the alarm sound. |
| 💡 Off | Alarm Light Off | Turns off the strobe light. |
| 💡 On | Alarm Light On | Turns on the strobe light. |
7. Bảo trì
- Vệ sinh: Regularly wipe the solar panel and motion sensor lens with a soft, damp vải để lau sạch bụi và mảnh vụn. Không sử dụng chất tẩy rửa có tính mài mòn.
- Chăm sóc pin: Ensure the device receives adequate sunlight for charging. If stored for extended periods, fully charge the device every 3 months to maintain battery health.
- Điều tra: Periodically check the mounting for stability and ensure all connections are secure.
KHAI THÁC. Xử lý sự cố
| Vấn đề | Nguyên nhân có thể | Giải pháp |
|---|---|---|
| Device not alarming/detecting motion. | Low battery, device not armed, sensor obstructed, incorrect mode. | Charge the device (solar or USB). Ensure the device is armed using the remote. Clear any obstructions from the sensor. Verify the correct working mode is selected. |
| Điều khiển từ xa không hoạt động. | Out of range, remote battery low, signal interference. | Move closer to the device (within 5 meters). Replace the remote control battery. Ensure no major obstructions are between the remote and the alarm. |
| Báo động giả. | High sensitivity, environmental factors (e.g., strong wind, small animals). | Reduce the motion sensor sensitivity using the remote control. Adjust the device's position to avoid areas with frequent environmental disturbances. |
| Âm thanh báo động quá nhỏ hoặc tắt hẳn. | Volume setting, sound turned off. | Increase the volume using the remote control. Ensure the 'Alarm Sound On' button has been pressed. |
9. Thông số kỹ thuật
| Tính năng | Chi tiết |
|---|---|
| Thương hiệu | PGST |
| Số hiệu mẫu | E10D |
| Màu sắc | Trắng |
| Nguồn điện | Năng lượng mặt trời |
| Trọng lượng sản phẩm | 3.2 ounce |
| Phạm vi phát hiện tối đa | 15 mét |
| Kiểu lắp đặt | Treo tường |
| Mô tả pin | Rechargeable battery charged by solar panel |
| Số lượng pin | Cần có 1 pin A (bao gồm) |
| Kích thước sản phẩm (D x R x C) | 1"D x 1"W x 1"H |
| Nhà sản xuất | PGST |
10. Bảo hành và Hỗ trợ
For warranty information and technical support, please refer to the contact details provided on the product packaging or the official PGST webtrang web. Giữ lại biên lai mua hàng làm bằng chứng mua hàng.
