1. Giới thiệu
Thank you for choosing the MERACH R14 Water Rowing Machine. This manual provides essential information for the safe and efficient use of your new fitness equipment. Please read it thoroughly before assembly and operation, and keep it for future reference. Proper assembly, operation, and maintenance are crucial for ensuring your safety and the longevity of the product.
2. Thông tin an toàn quan trọng
- Tham khảo ý kiến bác sĩ trước khi bắt đầu bất kỳ chương trình tập luyện mới nào.
- Đảm bảo tất cả các bộ phận được lắp ráp chắc chắn trước mỗi lần sử dụng.
- Giữ trẻ em và vật nuôi tránh xa máy trong quá trình vận hành.
- Đặt máy tập chèo thuyền trên một bề mặt phẳng, chắc chắn và có khoảng trống đủ rộng xung quanh.
- Không được vượt quá trọng lượng tối đa của người dùng là 158 kg (348 lbs).
- Mang giày dép và quần áo thể thao phù hợp khi tập thể dục.
- Nếu cảm thấy ngất xỉu, chóng mặt hoặc đau nhức, hãy ngừng tập thể dục ngay lập tức.
- Regularly inspect the machine for wear and tear, especially cables, straps, and moving parts.
3. Có gì trong hộp
Before beginning assembly, please ensure all components listed below are present and undamaged. If any parts are missing or damaged, contact customer support.
- Rowing Machine (main frame, rail, water tank, seat, footrests, handle)
- Tool Kit (including S4 and S5 Allen wrenches)
- Hướng dẫn sử dụng
- Giá đỡ máy tính bảng
- Water Purification Tablets (check packaging, may be included separately)
Image: All components of the MERACH R14 Water Rowing Machine laid out before assembly.
4. Thiết lập và lắp ráp
The MERACH R14 is designed for quick assembly, with most parts pre-assembled. Follow these steps for a smooth setup:
4.1. Lắp đặt pin
The monitor requires 2 AAA batteries (not included). Locate the battery compartment, typically near the monitor or within the main frame. Insert the batteries, ensuring correct polarity.
Video: Assembly instructions for the VOWVIT V-W3 rower, demonstrating battery installation and general setup. This video is relevant for the MERACH R14 due to similar design and assembly process.
4.2. Mở Máy
If your rower is in a folded position for storage, carefully unfold it. Ensure the rail is securely locked into place before proceeding.

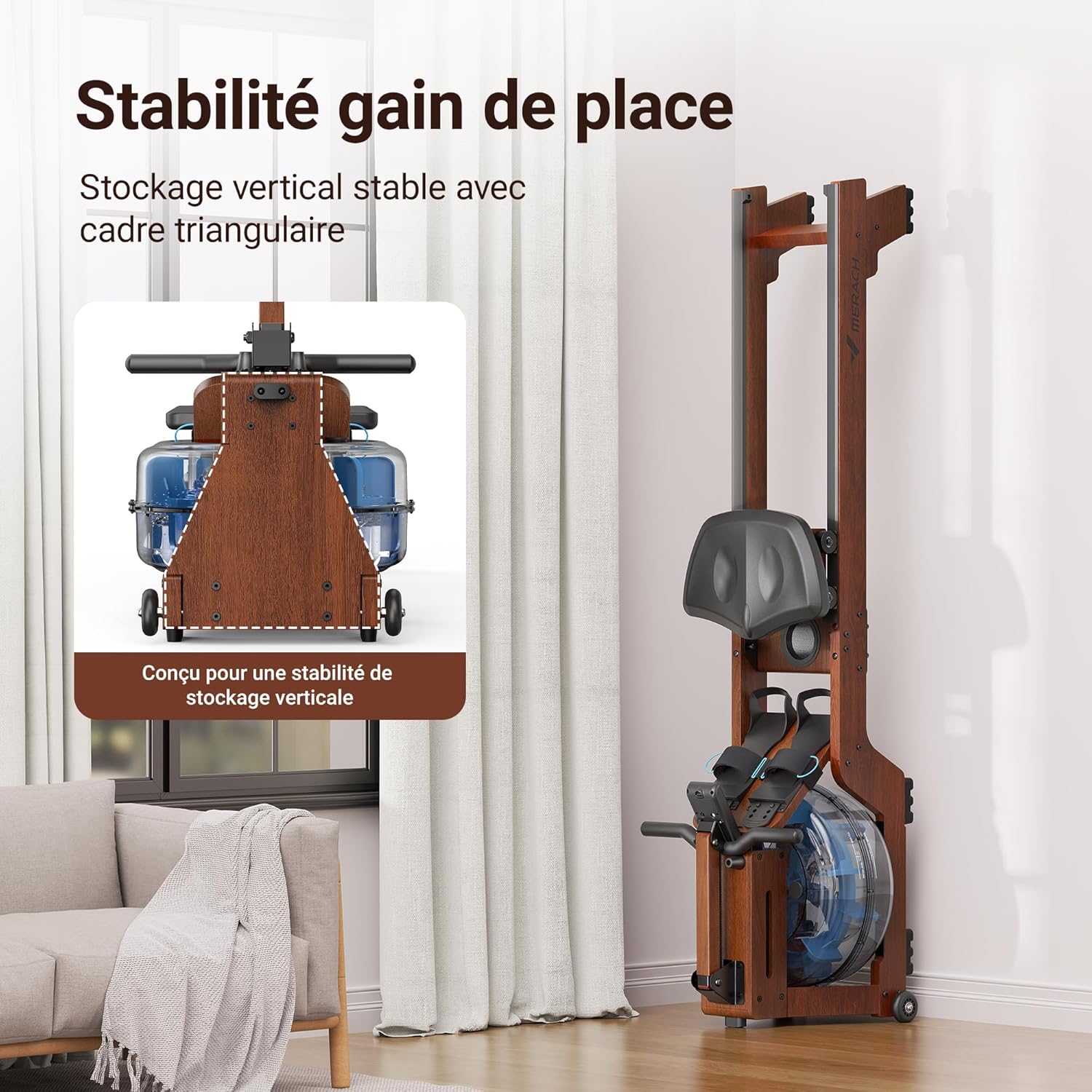

Image: The MERACH R14 Water Rowing Machine shown in its vertical storage position, highlighting its space-saving design.
4.3. Gắn ghế
Slide the ergonomic seat onto the rail. Ensure it moves smoothly along the track. Secure any stoppers or clips as indicated in the assembly guide.

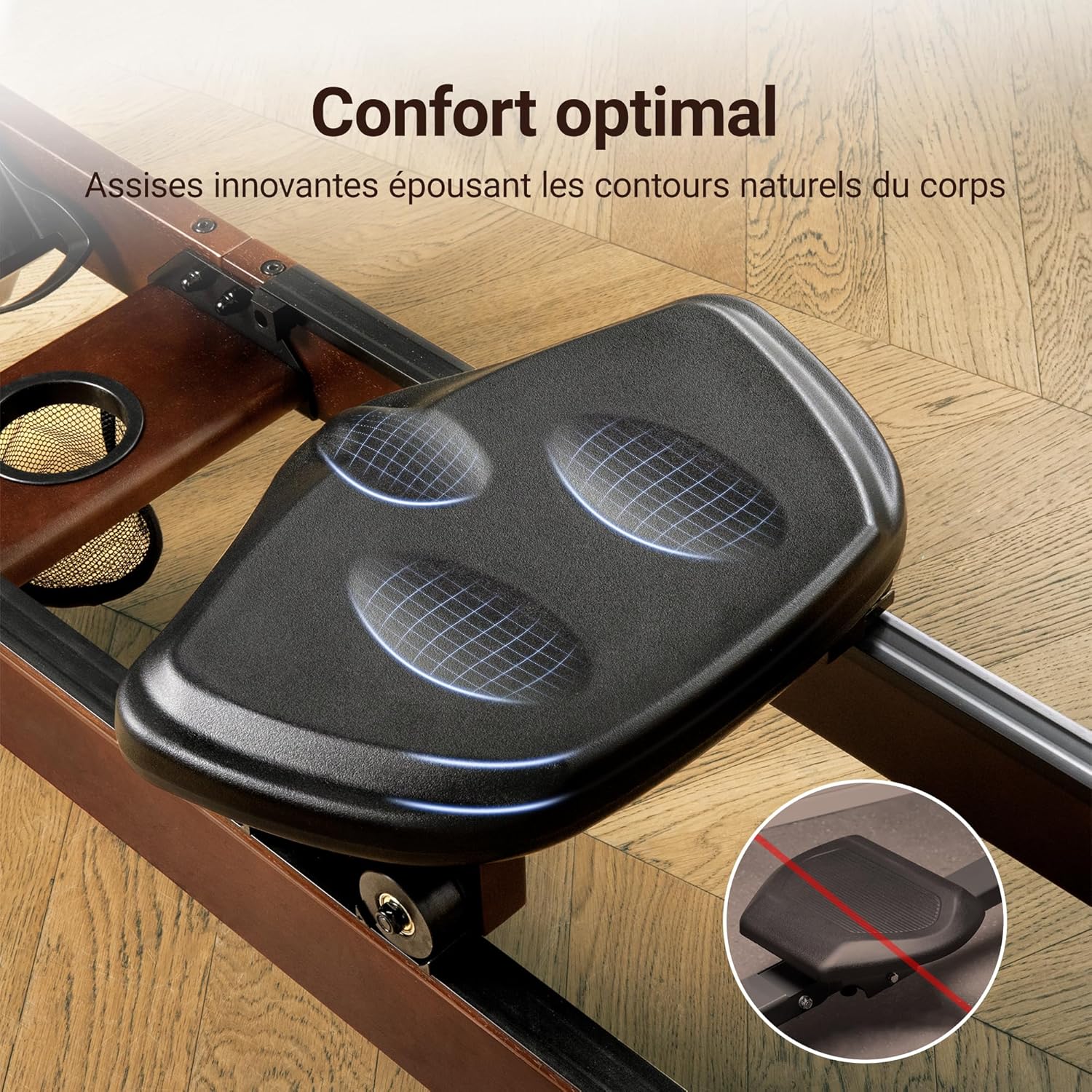

Image: Detail of the MERACH R14's ergonomic seat, designed for optimal comfort during workouts.
4.4. Installing the Tablet Holder
Attach the tablet holder to the designated area on the main frame, usually near the monitor. Use the provided S4 Allen wrench and screws to secure it firmly.
Image: The MERACH R14 Water Rowing Machine featuring its professional monitor and integrated tablet holder.
4.5. Đổ đầy nước vào bình chứa
Remove the water tank plug. Using the provided pump or a funnel, fill the 22-liter water tank with clean tap water up to the indicated maximum level. Replace the plug securely. Add one water purification tablet to the tank to prevent algae growth.
Hình ảnh: Chi tiết view of the MERACH R14's water tank, showcasing the 12-blade turbine for resistance.
5. Hướng dẫn vận hành
5.1. Basic Rowing Technique
- Điểm mấu chốt: Sit on the seat with knees bent, shins vertical, and arms extended forward, gripping the handle.
- Động lực: Dùng lực từ chân đẩy người lên, sau đó hơi ngả người ra sau từ hông, và cuối cùng kéo tay cầm về phía bụng.
- Kết thúc: Legs are extended, body is leaning back slightly, and the handle is at your abdomen.
- Sự phục hồi: Extend arms forward, then lean forward from the hips, and finally bend your knees to slide the seat forward to the catch position.
Maintain a smooth, continuous motion. The resistance is generated by the water, providing an immersive rowing experience.
5.2. Using the Professional Monitor
The integrated LCD monitor tracks your workout data. It typically displays:
- CÂU CHUYỆN: Total strokes completed.
- SPM: Số lần bấm máy mỗi phút.
- THỜI GIAN: Workout duration.
- THỜI GIAN/500m: Time to complete 500 meters at current pace.
- QUẬN: Distance covered.
- ODO: Odometer (total distance).
- CAL: Calories burned.
- XONG: Heart rate (requires compatible heart rate monitor, not included).
Use the buttons on the monitor (SET, MODE, RESET) to navigate through data, set targets, or reset your workout.
Image: The professional LCD monitor of the MERACH R14, showing various data points for tracking your workout progress.
5.3. Bluetooth Connectivity and App
The MERACH R14 features Bluetooth connectivity to sync with the exclusive MERACH app (available on App Store and Google Play). The app allows for:
- Detailed workout tracking and analysis.
- Access to guided workouts and virtual rowing experiences.
- Setting and monitoring fitness goals.
Ensure Bluetooth is enabled on your device and follow the app's instructions to pair with your rowing machine.
Image: A user interacting with the MERACH app on a smartphone, connected to the rowing machine via Bluetooth for an immersive experience.
6. Bảo trì
6.1. Xử lý nước
To keep the water clean and prevent algae growth, add one water purification tablet to the tank every 3-6 months, or as needed. Do not use harsh chemicals or bleach.
Video: Demonstration of adding a purification tablet to a water rowing machine tank. This video is relevant for maintaining water quality in the MERACH R14.
6.2. Vệ sinh
- Lau sạch khung và ghế bằng dung dịch tẩy rửa chuyên dụng.amp vải sau mỗi lần sử dụng để lau sạch mồ hôi và bụi bẩn.
- Periodically clean the rail with a soft cloth to ensure smooth seat movement.
- Avoid using abrasive cleaners or solvents that could damage the wood finish or plastic components.
6.3. Kiểm tra
Regularly check the following components:
- Bolts and Screws: Đảm bảo tất cả các chốt đều chặt.
- Cables and Straps: Check for any signs of fraying or wear.
- Con lăn ghế: Ensure they are clean and roll smoothly.
- Bể chứa nước: Inspect for any leaks or cracks.
KHAI THÁC. Xử lý sự cố
| Vấn đề | Nguyên nhân có thể | Giải pháp |
|---|---|---|
| Monitor not displaying data or turning on. | Dead batteries, incorrect battery installation, loose connection. | Check and replace AAA batteries. Ensure battery polarity is correct. Verify all cable connections to the monitor are secure. |
| Seat makes excessive noise or sticks. | Dirty rail, worn rollers, loose seat assembly. | Clean the rail thoroughly. Inspect seat rollers for damage. Tighten any loose bolts on the seat assembly. |
| Mức kháng lực có vẻ quá thấp/quá cao. | Water level in tank, rowing intensity. | Ensure water level is between MIN and MAX fill lines. The resistance is dynamic; row with more power for higher resistance. |
| Sự cố kết nối Bluetooth. | App not open, Bluetooth off, interference. | Ensure the MERACH app is open and your device's Bluetooth is enabled. Restart both the rower monitor and your device. Move closer to the rower. |
| Water in tank appears cloudy or has algae. | Lack of water purification. | Add a water purification tablet. If severe, drain the tank, clean with mild soap and water, rinse thoroughly, and refill with fresh water and a tablet. |
If you encounter issues not listed here or require further assistance, please contact MERACH customer support.
8. Thông số kỹ thuật sản phẩm
| Thương hiệu | MERACH |
| Tên mẫu | R14R1 |
| Màu sắc | Gỗ |
| Vật liệu khung | Gỗ cao su |
| Kích thước sản phẩm (D x R x C) | 98 x 44 x 46 cm (38.6 x 17.3 x 18.1 inch) |
| Cân nặng | 29.5 kg (65 pound) |
| Khuyến nghị trọng lượng tối đa | 158 kg (348 pound) |
| Cơ chế kháng chiến | Nước |
| Dung tích bình chứa nước | 22 lít |
| Kiểu hiển thị | Màn hình LCD |
| Nguồn điện | Chạy bằng pin (yêu cầu 2 pin AAA) |
| Tính năng đặc biệt | High-quality hardwood, immersive water resistance, professional monitor, tablet holder. |
Image: Technical diagram illustrating the dimensions and maximum weight capacity of the MERACH R14 Water Rowing Machine.
9. Bảo hành và Hỗ trợ Khách hàng
MERACH offers a standard warranty for its products. An extended warranty of two years may be available upon request. Please refer to your purchase documentation for specific warranty terms and conditions.
For any questions, technical assistance, or warranty claims, please contact MERACH customer support. Details can typically be found on the MERACH official webtrang web hoặc thông qua nền tảng mua hàng của bạn.
Hỗ trợ khách hàng: MERACH provides specialized customer support. For assistance, please refer to the contact information provided with your product or on the official MERACH webđịa điểm.
