Garvee Hydraulic Lift Table Cart 500 LBS Instruction Manual

1. Giới thiệu

Thank you for choosing the Garvee Hydraulic Lift Table Cart. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your new lift table cart. Please read all instructions carefully before use to ensure proper function and to prevent injury or damage.

The Garvee Hydraulic Lift Table Cart is designed for material handling and transportation, offering a robust 500 LBS load capacity and a lifting height of up to 28.5 inches. Its single scissor mechanism and hydraulic pump system provide smooth and controlled lifting and lowering operations.

Image 1.1: Garvee Hydraulic Lift Table Cart 500 LBS. This image shows the complete lift table cart with its red frame, grey non-slip platform, and chrome handle.

2. Thông tin an toàn

Always prioritize safety when operating the lift table cart. Failure to follow these safety guidelines may result in serious injury or property damage.

• Sức chịu tải: Do not exceed the maximum load capacity of 500 LBS (227 kg). Overloading can cause structural failure and instability.
• Phân phối tải: Ensure loads are centered and evenly distributed on the platform to prevent tipping.
• Tấm chống trượt: Utilize the included 3 mm thick rubber anti-slip mat with adhesive backing to secure items on the table, minimizing displacement and sliding accidents.
• Over-Lifting Protection: The hydraulic system includes a limiter protection feature to prevent the platform from being raised beyond its safe maximum height.
• Maintenance/Overload Protection: The cart is equipped with a maintenance/overload protection lever. Do not bypass or modify this safety feature.
• Braking Wheels: Always engage the wheel brakes when loading, unloading, or when the cart is stationary to prevent unintended movement.
• Bề mặt ổn định: Operate the lift table cart on a flat, level, and stable surface. Avoid sloped or uneven terrain.
• Khu vuc sach se: Keep hands, feet, and other body parts clear of the scissor mechanism during lifting and lowering operations.
• Thiết bị bảo vệ cá nhân (PPE): Wear appropriate PPE, such as safety shoes and gloves, when handling heavy loads.

3. Thành phần sản phẩm

Familiarize yourself with the main components of your Garvee Hydraulic Lift Table Cart:

• Nền tảng: The top surface where items are placed, featuring a non-slip texture.
• Cơ chế cắt kéo: The interlocking steel bars that extend and retract to raise and lower the platform.
• Bơm thủy lực: The system responsible for lifting the platform.
• Bàn đạp chân: Used to pump the hydraulic fluid and raise the platform.
• Hydraulic Release Lever: A hand-operated lever (often near the handle) used to control the lowering of the platform.
• Xử lý: For pushing and steering the cart.
• Bánh xe: Four universal wheels, typically with 360-degree rotation, two of which include braking mechanisms for stability.
• Tấm chống trượt: A removable rubber mat for securing items on the platform.

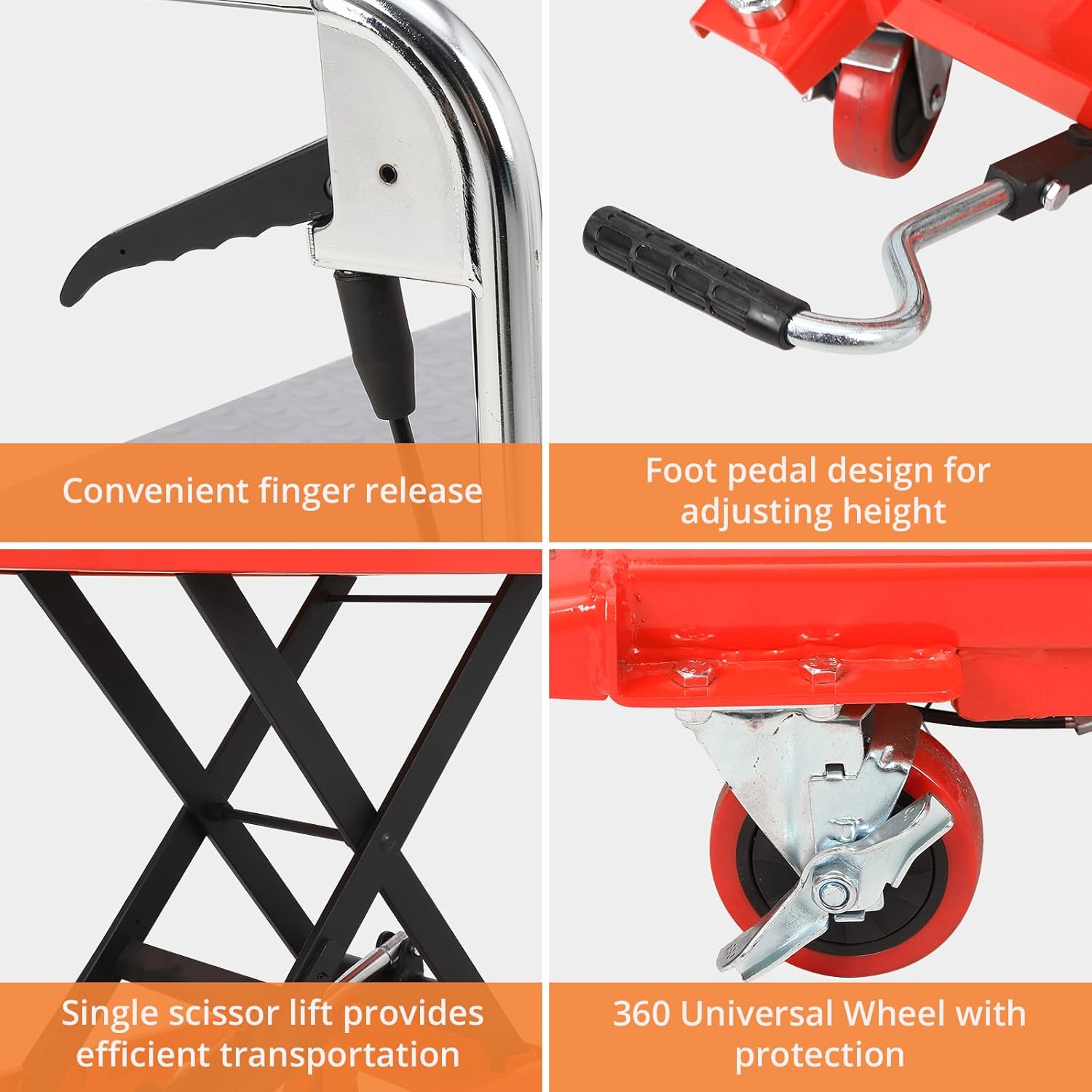

Image 3.1: Key components of the lift table cart, including the convenient finger release, foot pedal for adjusting height, single scissor lift, and 360-degree universal wheel with protection.

4. Thiết lập và lắp ráp

The Garvee Hydraulic Lift Table Cart requires minimal assembly. Follow these steps to prepare your cart for use:

1. Giải nén các thành phần: Cẩn thận lấy tất cả các bộ phận ra khỏi bao bì. Kiểm tra xem tất cả các bộ phận có đầy đủ và không bị hư hỏng hay không.
2. Prepare Bolts: Gather the necessary bolts, washers, and tools for assembly.
3. Đính kèm Xử lý: Secure the handle to the main frame using the provided 2 flat washers and 2 bolts. Ensure it is firmly attached.
4. Attach Foot Lever: Connect the foot lever to the lift lever using the appropriate bolt and lock washer.
5. Test Hydraulic Release: Press the hydraulic release by hand to ensure it functions smoothly.
6. Apply Non-Slip Pad: If not already applied, fix the 3 mm thick rubber anti-slip mat securely to the table platform using its adhesive backing.

Image 4.1: Visual guide for convenient installation, showing steps to prepare bolts, attach the handle, attach the foot lever, and test the hydraulic release.

5. Hướng dẫn vận hành

Follow these steps for safe and effective operation of your lift table cart:

5.1. Moving the Cart

1. Ensure the platform is in its lowest position when moving the cart without a load.
2. Release the wheel brakes.
3. Use the handle to push and steer the cart to the desired location.
4. Once in position, engage the wheel brakes to secure the cart.

Image 5.1: Easy mobility and security features, highlighting the 360-degree universal wheel with braking capability for secure operation.

5.2. Lifting the Platform

1. Place the item(s) securely on the platform, ensuring the load is centered and within the 500 LBS capacity. Use the non-slip pad if necessary.
2. Engage the wheel brakes to prevent movement.
3. Repeatedly press the foot pedal to raise the platform to the desired height. The broad foot pedal design allows for effortless pumping.
4. The platform can be elevated up to 28.5 inches. Do not attempt to force it beyond its maximum height.

Image 5.2: Effortless lifting with the 3mm non-slip pad to fix cargo on the table, demonstrating the hydraulic lifting action.

Image 5.3: Adjustable height range of the lift table cart, illustrating the minimum and maximum lifting positions.

5.3. Lowering the Platform

1. Ensure the area below the platform is clear of obstructions and personnel.
2. Engage the wheel brakes.
3. Slowly depress the hydraulic release lever. This will gradually lower the platform. Control the speed of descent by adjusting the pressure on the lever.
4. Once the platform is at the desired height or fully lowered, release the lever.

6. Bảo trì

Regular maintenance ensures the longevity and safe operation of your Garvee Hydraulic Lift Table Cart.

• Chất lỏng thủy lực: Periodically check the hydraulic fluid level. Refer to the hydraulic pump manufacturer's guidelines for fluid type and replacement intervals. Ensure no oil leakage.
• Bôi trơn: Lubricate all pivot points and moving parts of the scissor mechanism regularly with appropriate grease to ensure smooth operation and prevent wear.
• Kiểm tra bánh xe: Inspect wheels and casters for wear, damage, or debris. Ensure they rotate freely and the brakes function correctly.
• Tính toàn vẹn về cấu trúc: Regularly inspect the frame, platform, and scissor mechanism for any signs of damage, cracks, bends, or loose fasteners. Tighten any loose bolts.
• Vệ sinh: Keep the cart clean and free of dirt, dust, and corrosive materials.
• Kho: Store the lift table cart in a dry, clean environment when not in use, preferably with the platform in the lowest position.

KHAI THÁC. Xử lý sự cố

This section addresses common issues you might encounter with your lift table cart.

Nếu bạn gặp phải các vấn đề không được liệt kê ở đây hoặc nếu các giải pháp không giải quyết được vấn đề, vui lòng liên hệ với bộ phận hỗ trợ khách hàng.

8. Thông số kỹ thuật

Detailed specifications for the Garvee Hydraulic Lift Table Cart 500 LBS:

Image 8.1: The lift table cart demonstrating its 500 LBS large load capacity with a package on the platform.

9. Thông tin bảo hành

Warranty information for this product is not available in the provided data. Please refer to the product packaging or contact the manufacturer directly for warranty details.

10. Hỗ trợ khách hàng

For technical assistance, parts, or further inquiries, please contact Garvee customer support. Contact information is typically found on the product packaging, the manufacturer's official webtrang web hoặc thông qua điểm mua hàng của bạn.

Tài nguyên trực tuyến: You may find additional support and FAQs by visiting the Garvee Store on Amazon: Garvee Store
