AMIR Key Lock Box Instruction Manual

Giới thiệu

The AMIR Key Lock Box (Model HA67R) is a weatherproof 4-digit combination key storage solution designed for secure key access. It features a removable shackle for versatile mounting options and durable construction suitable for both indoor and outdoor use. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and security.

Image: The AMIR Key Lock Box, Model HA67R, in red and black, with its front cover open, revealing keys stored inside. The combination dials are visible on the front.

Tính năng sản phẩm

• Removable Shackle: Offers flexible installation options. The lock box can be hung on a door knob, car handle, railings, fences, or pipes, or it can be fixed to a wall.
• Sức chứa lớn: Designed to store up to 5 standard house keys or 3 larger keys. The internal dimensions are approximately 2.17 x 1.38 x 1.14 inches.
• Vật liệu chắc chắn: Constructed from high-strength zinc alloy for the body and hardened steel for the shackle, providing resistance against cutting and sawing. The material is rust-resistant, ensuring durability.
• Bảo mật cao: Features a 4-digit combination lock, offering 10,000 possible combinations for enhanced security. The combination can be reset as needed. It is recommended to record your new combination securely.
• Thiết Kế chống chịu thời tiết: Suitable for both indoor and outdoor environments, protecting stored keys from various weather conditions.

Hình ảnh: Một chi tiết view highlighting the detachable shackle, the 4-digit combination mechanism, and the reinforced metal body of the key lock box.

Nội dung gói

Upon opening your AMIR Key Lock Box package, you should find the following items:

• 1 x AMIR Key Lock Box (Model HA67R)
• 1 x Hướng dẫn sử dụng

Cài đặt

Thiết lập kết hợp của bạn

The default combination for your new AMIR Key Lock Box is 0-0-0-0. Follow these steps to set your personalized 4-digit combination:

1. Mở hộp: Dial the default code (0-0-0-0) to align with the indicator line, then pull down the front cover to open the key box.
2. Locate Reset Lever: Inside the open compartment, locate the reset lever on the back of the front cover.
3. Move Reset Lever: Push the RESET lever from position A to position B.
4. Thiết lập kết hợp mới: With the lever in position B, scroll the number dials to set your desired 4-digit combination. Ensure the numbers are aligned with the indicator line.
5. Confirm New Combination: Push the RESET lever back to position A. Your new combination is now set.
6. Test Combination: Close the front cover and scramble the dials. Then, enter your new combination to verify it opens correctly.

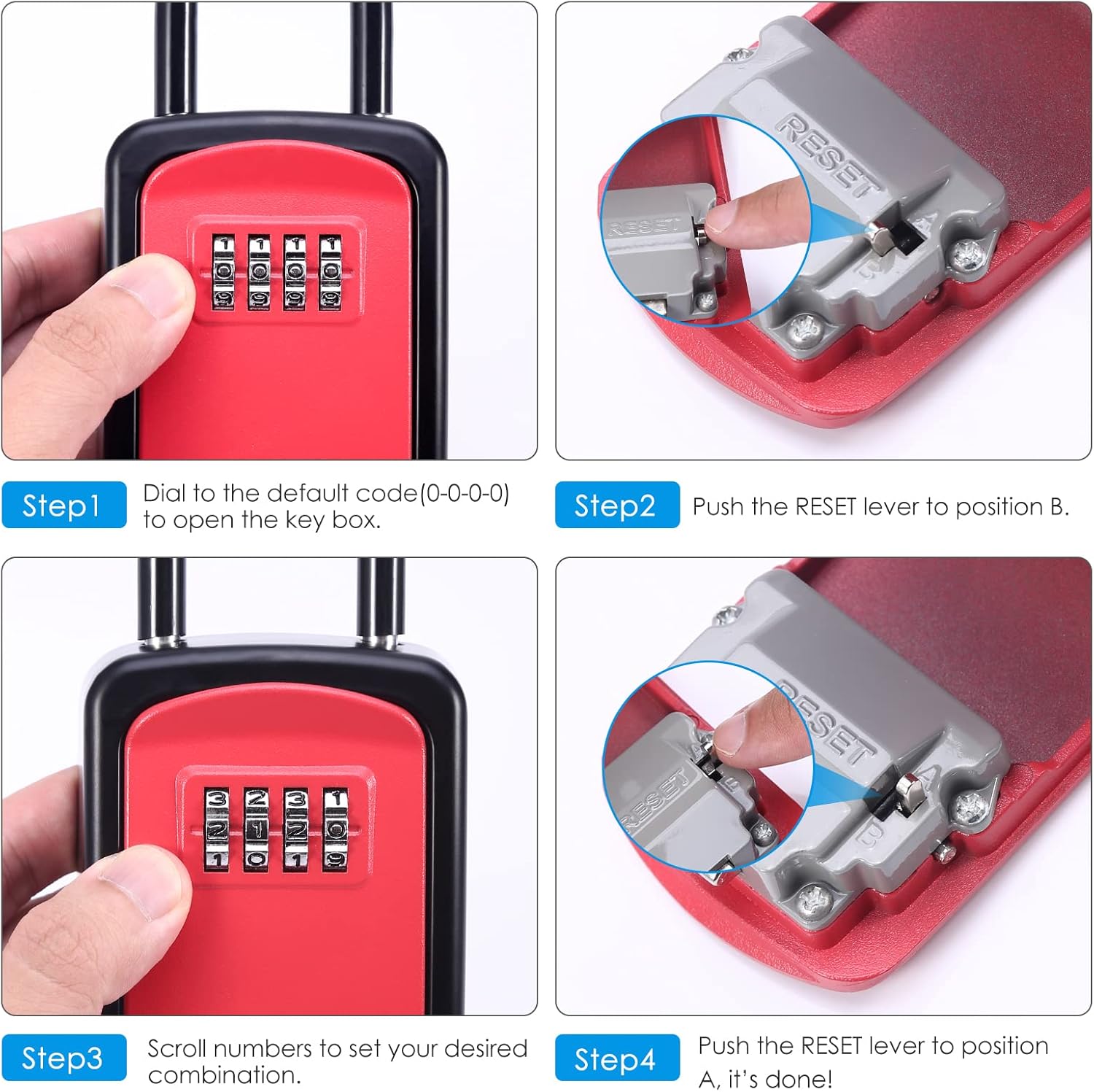

Image: A visual guide demonstrating the four steps to reset the combination code on the key lock box, including opening with the default code, moving the reset lever, setting new numbers, and returning the lever.

Quan trọng: After setting a new combination, it is highly recommended to write it down and store it in a secure, memorable location. Do not store the combination inside the lock box.

Installing the Removable Shackle

The AMIR Key Lock Box features a removable shackle for flexible installation. You can use it as a portable lock box or mount it permanently.

1. Remove Shackle: To remove the shackle, open the lock box. Inside the top part of the main body, locate and push the release button upwards. While holding the button, pull the shackle upwards to detach it.
2. Attach Shackle: To attach the shackle, align its ends with the holes in the top of the lock box. Push the release button upwards and insert the shackle ends firmly until they click into place. Release the button to secure.
3. Tùy chọn lắp đặt:
   • Treo: With the shackle attached, hang the lock box on a door knob, gate, fence, or other suitable fixture.
   • Lắp trên tường: If you prefer permanent installation, the shackle can be removed. Use appropriate screws and anchors (not included) to secure the back of the lock box to a wall or solid surface. Ensure the mounting location is discreet and secure.

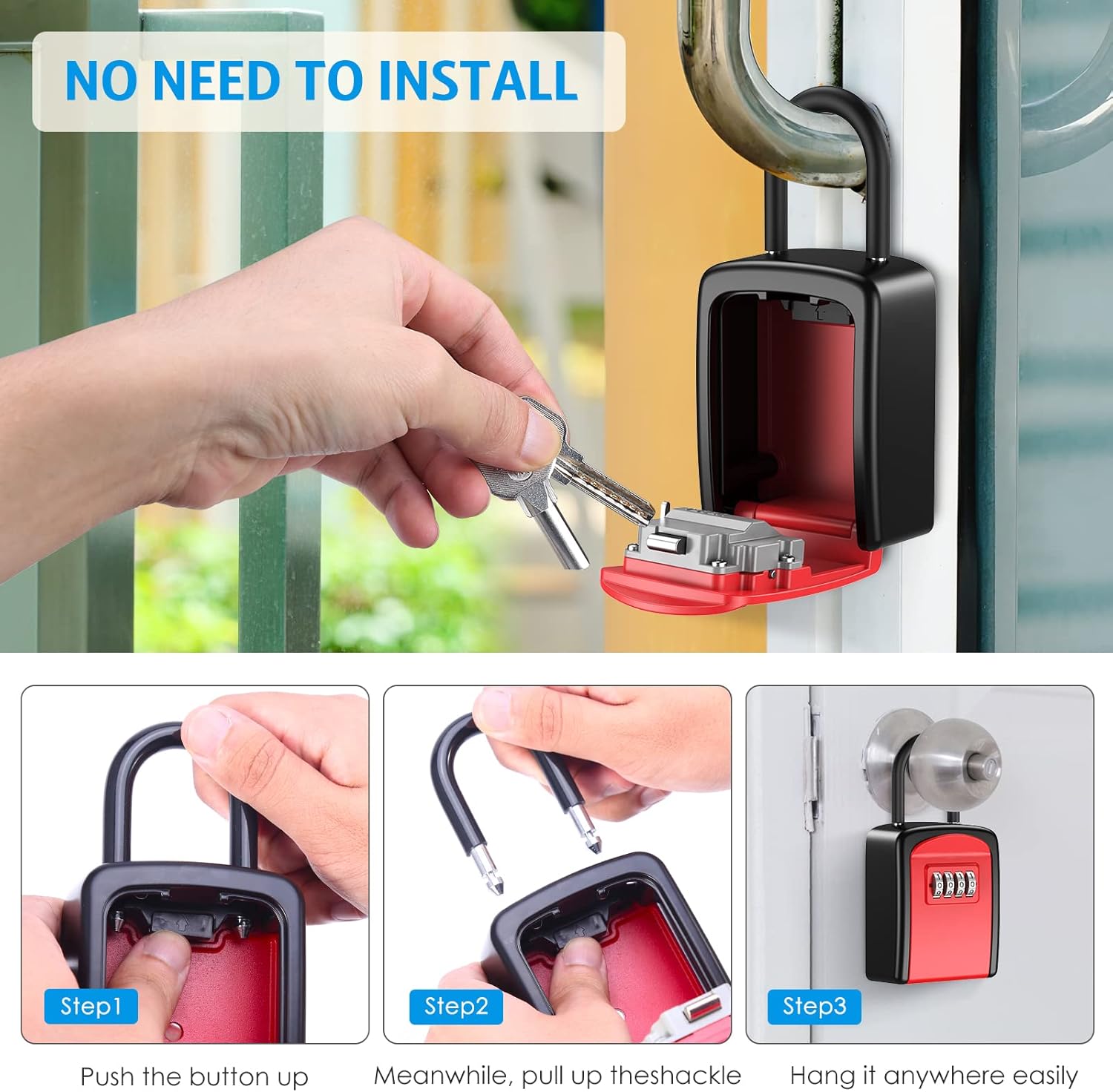

Image: A sequence of three images illustrating how to detach the shackle by pushing a button and pulling it up, and then how to hang the lock box on a door handle.

Operating the Lock Box

Mở hộp khóa

1. Rotate the dials to align your set 4-digit combination with the indicator line on the front of the lock box.
2. Pull down the front cover to open the compartment and access your keys.

Closing and Securing the Lock Box

1. Place your keys securely inside the compartment.
2. Close the front cover firmly until it latches.
3. Scramble the combination dials to a random set of numbers. This locks the box and prevents unauthorized access.

BẢO TRÌ

To ensure the longevity and smooth operation of your AMIR Key Lock Box, follow these maintenance guidelines:

• Vệ sinh: Regularly wipe the exterior and dials with a soft, damp cloth to remove dirt and grime. Avoid abrasive cleaners or solvents.
• Bôi trơn: If the dials become stiff, apply a small amount of graphite lubricant (e.g., pencil lead dust) to the moving parts. Avoid oil-based lubricants, as they can attract dust and debris.
• Điều tra: Periodically inspect the lock box for any signs of wear, damage, or corrosion, especially if used outdoors. Ensure the shackle mechanism operates smoothly.
• Tránh lực: Never force the dials or the opening mechanism. If you encounter resistance, re-check your combination and ensure the dials are properly aligned.

Xử lý sự cố

Problem: Cannot open the lock box.

• Giải pháp 1: Double-check that you are entering the correct 4-digit combination. Ensure each number is precisely aligned with the indicator line.
• Giải pháp 2: If you recently reset the combination, ensure the reset lever inside the box was moved back to position A after setting the new code.
• Giải pháp 3: Scramble the dials completely, then carefully re-enter your combination. Sometimes a slight misalignment can prevent opening.

Vấn đề: Mặt đồng hồ cứng hoặc khó xoay.

• Giải pháp 1: Clean the dials and surrounding areas with a soft, dry cloth to remove any accumulated dust or debris.
• Giải pháp 2: Apply a small amount of graphite lubricant (e.g., from a pencil tip) to the gaps around the dials. Avoid using oil-based lubricants.

Problem: Shackle is stuck or difficult to remove/attach.

• Giải pháp 1: Ensure the internal release button is fully pressed upwards when attempting to remove or attach the shackle.
• Giải pháp 2: Check for any obstructions or debris in the shackle holes or around the release button.

Thông số kỹ thuật

Bảo hành và Hỗ trợ

AMIR is committed to providing high-quality products and customer satisfaction. Your AMIR Key Lock Box (Model HA67R) comes with the following:

• 6 Months Return Policy: For any issues within the first six months.
• Bảo hành 24 tháng: Covering manufacturing defects and functional issues for two years from the date of purchase.
• Hỗ trợ trọn đời: Dedicated assistance for any operational difficulties, functionality concerns, or if the product arrives faulty or damaged.

For support or inquiries, please refer to the contact information provided with your purchase or visit the official AMIR webđịa điểm.
