Cudy 8 Port PoE+ Switch with 2 Uplink Ports

1. Giới thiệu

This manual provides detailed instructions for the installation, configuration, and operation of your Cudy FS1010P 8 Port PoE+ Switch. Please read this manual thoroughly before using the device to ensure proper functionality and safety.

Image: The Cudy FS1010P 8 Port PoE+ Switch, highlighting its 8 PoE+ ports and 2 uplink ports.

2. Tính năng sản phẩm

The Cudy FS1010P is an unmanaged 8-port PoE+ switch designed for reliable network expansion and power delivery. Key features include:

• 8 PoE+ Ports: Provides power and data over a single Ethernet cable, compliant with IEEE 802.3af/at standards.
• 2 Uplink Ports: Dedicated ports for connecting to a router or network backbone.
• 120W Total PoE Power: Sufficient power budget for multiple PoE devices such as IP cameras, VoIP phones, and wireless access points.
• PD Detect and Port Power Prioritization: Automatically detects PoE devices and delivers up to 32W per port (802.3at) or 15.4W (802.3af). Prioritizes power delivery to critical devices.
• Chế độ mở rộng: Extends PoE and data transmission distance up to 250 meters (820 feet) at 10 Mbps per port.
• Chế độ VLAN: Isolates PoE+ ports from each other to enhance network security and performance.
• Watchdog Function: Automatically detects and restarts unresponsive PoE devices, ensuring continuous operation.
• Cắm và chạy: Requires no software or configuration for basic operation.
• Thiết kế không quạt: Ensures silent operation, suitable for various environments.

Image: Illustration of devices compatible with PoE (802.3af) and PoE+ (802.3at) standards, including IP cameras, VoIP phones, and access points.

3. Nội dung gói hàng

Hãy kiểm tra xem các mặt hàng sau có được bao gồm trong gói hàng của bạn hay không:

• Cudy FS1010P PoE+ Switch
• Dây nguồn
• Hướng dẫn cài đặt

Image: The Cudy FS1010P switch, power cord, and quick installation guide as included in the product box.

4. Vật lý trênview

Familiarize yourself with the ports and indicators on the switch.

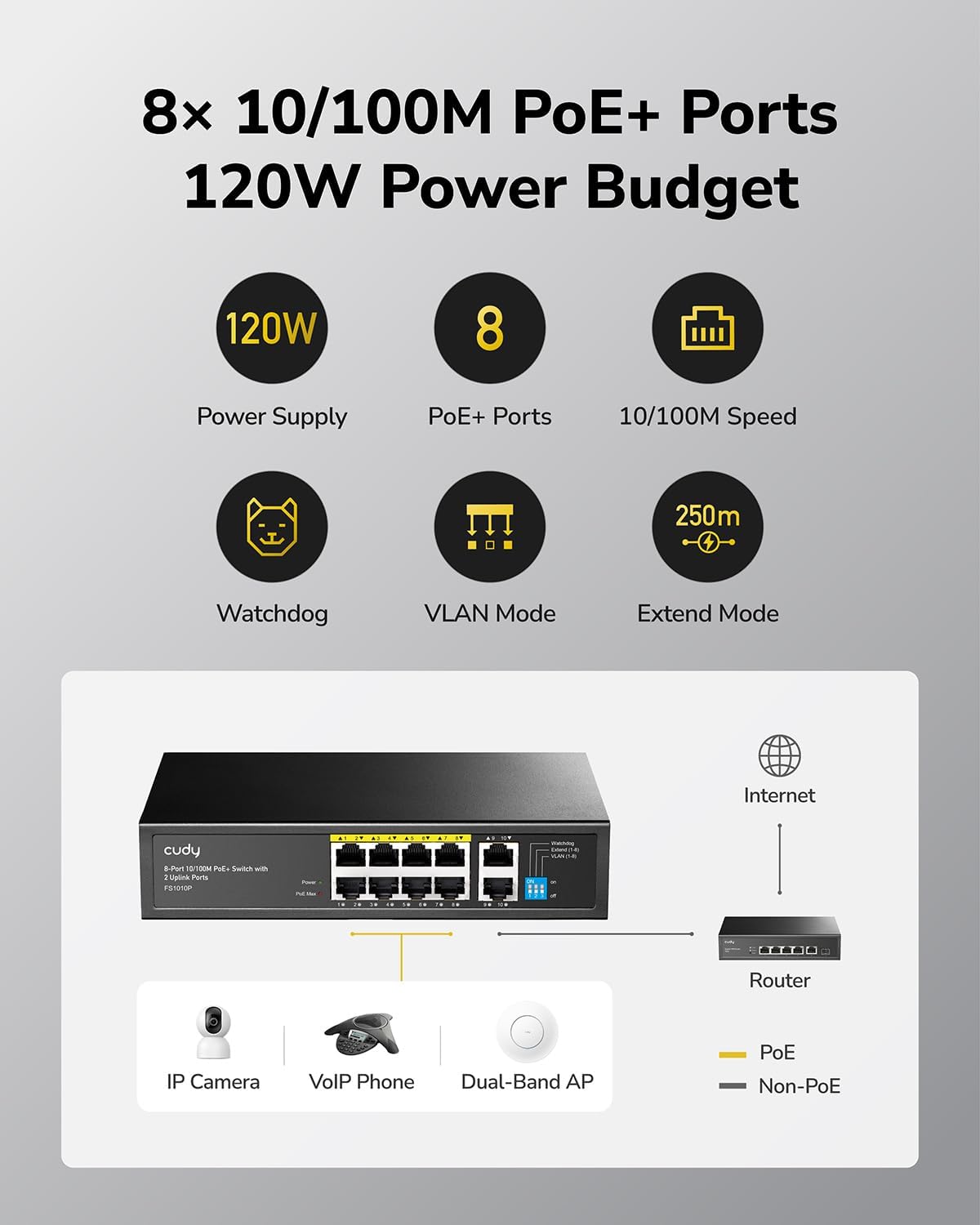

Image: A diagram showing the front panel of the Cudy FS1010P switch with 8 PoE+ ports, 2 uplink ports, and LED indicators for power, PoE Max, and port status.

Đèn báo LED:

• PWR (Công suất): Cho biết trạng thái nguồn của công tắc.
• PoE tối đa: Flashes when the total PoE power budget reaches 90% utilization.
• Link/Act (Per Port): Indicates network activity and connection status for each port.

Thiết bị ngắt:

The FS1010P features DIP switches for selecting different operating modes:

• Chế độ mở rộng: When enabled, extends the PoE and data transmission distance.
• Chế độ VLAN: When enabled, isolates PoE+ ports for enhanced security.

5. Hướng dẫn thiết lập

The Cudy FS1010P is a plug-and-play device, requiring minimal setup.

1. Kết nối nguồn: Connect the provided power cord to the switch's power input and then to a power outlet. The PWR LED will illuminate.
2. Connect Uplink: Connect one of the 2 uplink ports (ports 9 or 10) to your router or network backbone using a standard Ethernet cable.
3. Kết nối các thiết bị PoE: Connect your PoE-compatible devices (e.g., IP cameras, VoIP phones, wireless access points) to any of the 8 PoE+ ports (ports 1-8) using Ethernet cables. The switch will automatically detect and power these devices.
4. Xác minh kết nối: Check the Link/Act LED for each connected device. A solid light indicates a successful connection, and a flashing light indicates data activity.

Image: A hand plugging an Ethernet cable into a port on a network switch, illustrating the connection process.

6. Chế độ hoạt động

The FS1010P offers two special operating modes configurable via DIP switches:

6.1. Chế độ mở rộng

Extend Mode allows for longer cable runs for PoE devices. When enabled, the transmission distance for PoE and data can reach up to 250 meters (820 feet). Note that in Extend Mode, the data rate per port is limited to 10 Mbps.

• Để kích hoạt: Set the corresponding DIP switch to the "ON" position for Extend Mode.
• Để vô hiệu hóa: Set the corresponding DIP switch to the "OFF" position for Normal Mode (100m distance, 10/100 Mbps).

Image: A visual representation of the Extend Mode DIP switch setting, showing extended range up to 250m at 10 Mbps and normal range of 100m at 10/100 Mbps.

6.2. Chế độ VLAN

VLAN Mode enhances network security by isolating the PoE+ ports from each other. This prevents broadcast storms and unauthorized access between connected devices on different ports, improving overall network stability and security.

• Để kích hoạt: Set the corresponding DIP switch to the "ON" position for VLAN Mode.
• Để vô hiệu hóa: Set the corresponding DIP switch to the "OFF" position for Normal Mode (ports communicate freely).

Image: A diagram showing the VLAN Mode DIP switch setting, illustrating how ports are isolated from each other for enhanced security.

7. PoE Management

The FS1010P incorporates intelligent Power over Ethernet management features.

7.1. Cơ quan giám sát PoE

The Watchdog function continuously monitors the status of connected PoE devices. If a device becomes unresponsive, the switch will automatically restart the corresponding PoE port to restore functionality, ensuring reliable operation without manual intervention.

Image: An icon representing the Watchdog feature, with an illustration of a camera being automatically restarted by the switch.

7.2. Quản lý năng lượng thông minh

The switch features intelligent power management to prevent overload. If the total power consumption exceeds the 120W budget, the switch will automatically remove power from the lowest priority devices to maintain stability for critical connections. The PoE Max LED will flash when 90% of the power budget is utilized.

Image: A graphic showing a "PoE Max" warning when 90% of the power budget is used, and an illustration of intelligent power management automatically shedding power from less critical devices if the budget is exceeded.

8. Thông số kỹ thuật

Image: The Cudy FS1010P switch with its dimensions labeled: 8.66 inches (length), 5.91 inches (width), and 1.73 inches (height).

KHAI THÁC. Xử lý sự cố

• Không có điện: Ensure the power cord is securely connected to both the switch and a working power outlet. Check if the PWR LED is illuminated.
• Không có kết nối/hoạt động nào trên cổng:
  • Kiểm tra xem cáp Ethernet đã được kết nối đúng cách ở cả hai đầu chưa.
  • Đảm bảo thiết bị được kết nối đã được bật nguồn và hoạt động bình thường.
  • Hãy thử sử dụng cáp Ethernet hoặc cổng khác.
• Thiết bị PoE không nhận được nguồn điện:
  • Confirm the device is PoE-compatible (IEEE 802.3af/at).
  • Check the PoE Max LED. If it's flashing, the power budget might be exceeded. Disconnect non-essential PoE devices or use a switch with a higher power budget.
  • Ensure the cable length does not exceed 100 meters (or 250 meters if Extend Mode is enabled).
• Slow Network Speed in Extend Mode: This is normal. Extend Mode limits port speed to 10 Mbps to achieve longer distances. For higher speeds, disable Extend Mode (limiting distance to 100m).
• Intermittent Device Connection: The Watchdog function should automatically restart unresponsive devices. If issues persist, check the device itself or the cable.

10. Thông tin an toàn

• Không để thiết bị tiếp xúc với nước hoặc độ ẩm quá cao.
• Không tự ý mở hoặc sửa chữa thiết bị. Vui lòng liên hệ nhân viên có trình độ để được bảo dưỡng.
• Đảm bảo thông gió thích hợp xung quanh công tắc để tránh quá nhiệt.
• Chỉ sử dụng bộ đổi nguồn được cung cấp cùng với thiết bị.
• The device is equipped with surge and ESD protection. However, avoid installing during lightning storms.

Image: A graphic depicting lightning bolts and a shield icon, representing the switch's built-in surge and ESD protection features.

11. Bảo hành và Hỗ trợ

Để biết thông tin về bảo hành và hỗ trợ kỹ thuật, vui lòng tham khảo trang web chính thức của Cudy. website or contact Cudy customer service. The installation guide included in your package may also contain specific warranty details.

Nhà sản xuất: Công ty TNHH Công nghệ Cudy Thâm Quyến
