Giới thiệu
The Hirisi Tackle XT1 is a motion-activated security device designed to monitor your surroundings, particularly useful for carp fishing and camping. It features an integrated infrared sensor with a 120-degree detection angle. When motion is detected within its range, the device activates visual and audible alerts to notify you of approaching individuals or animals. The XT1 can be configured for sound and light alerts or light-only alerts, offering flexibility for various situations.
Nội dung gói
- 1 x Hirisi Tackle XT1 Motion Detector
Cài đặt
1. Lắp đặt pin
The XT1 requires 3 x 1.5V AAA alkaline batteries (not included). To install the batteries:
- Xác định vị trí nắp ngăn chứa pin ở mặt sau của thiết bị.
- Cẩn thận tháo nắp.
- Lắp ba pin AAA, đảm bảo đúng cực (+/-) như chỉ dẫn bên trong ngăn chứa pin.
- Lắp lại nắp ngăn chứa pin một cách an toàn.

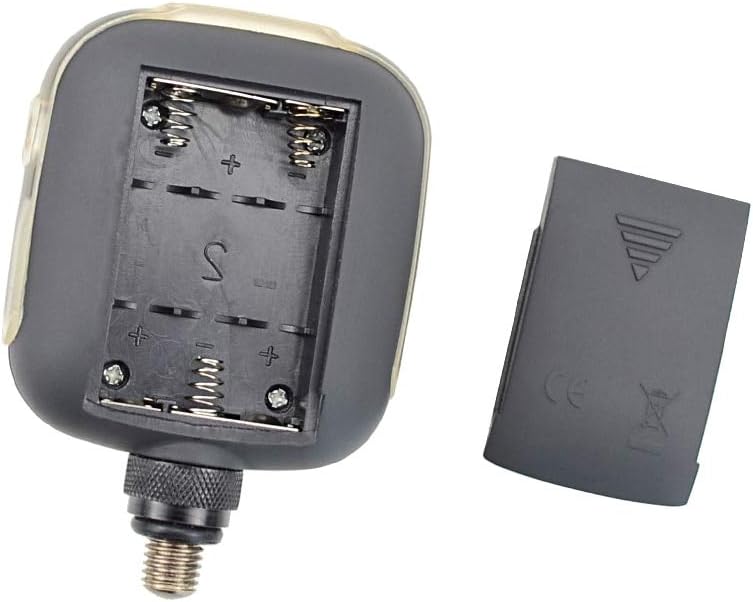

Image: Battery compartment with cover removed, showing where to insert AAA batteries.
2. Gắn thiết bị
The XT1 is designed to be mounted on a bankstick using its standard 3/8-inch thread. For optimal performance, mount the device at a height of approximately one meter (3.3 feet) to ensure the sensor has a clear line of sight.

Image: The XT1 motion detector in an outdoor setting, demonstrating its detection range.
Hướng dẫn sử dụng
1. Bật/Tắt nguồn
To turn the device on or off, press and hold the power button located on the side of the unit for 3 seconds.
2. Điều chỉnh âm lượng
To adjust the volume, short press the power button. The device offers 7 adjustable volume levels. Continue short pressing until your desired volume is reached.
3. Detection and Alerts
Once powered on, the XT1's infrared sensor will monitor an area with a 120-degree angle and a detection distance of 2-4 meters. When motion is detected:
- A red LED light on top will illuminate steadily, and a light will flash.
- The high-output speaker will emit an audible tone (if not in silent mode).
- Simultaneously, a signal is sent to your receiver (if paired).
4. Silent Mode (LED Only)
The device can be set to operate with only LED alerts and no sound. Refer to the volume adjustment steps; one of the settings will correspond to silent operation with visual alerts only.

Hình ảnh: Bên view of the XT1, indicating the on/off and volume control button.

Hình ảnh: Chi tiết views of the sensor and side LED lights on the XT1.
BẢO TRÌ
- Vệ sinh: Lau thiết bị bằng vải mềm, khô. Không sử dụng chất tẩy rửa có tính mài mòn hoặc dung môi.
- Thay thế pin: Replace batteries when the device's performance diminishes or if it fails to power on. Always use fresh AAA alkaline batteries. Remove batteries if the device will not be used for an extended period to prevent leakage.
- Kho: Bảo quản thiết bị ở nơi khô ráo, thoáng mát, tránh ánh nắng trực tiếp và nhiệt độ cao.
Xử lý sự cố
| Vấn đề | Nguyên nhân có thể | Giải pháp |
|---|---|---|
| Thiết bị không bật nguồn. | Pin chết hoặc lắp không đúng cách. | Kiểm tra cực tính của pin. Thay pin AAA mới. |
| Không có âm thanh từ thiết bị. | Volume set to minimum or silent mode. | Short press the power button to increase volume. Ensure it's not in silent (LED-only) mode. |
| Poor detection range or false alarms. | Obstructions, incorrect mounting height, or environmental factors. | Ensure a clear line of sight for the sensor. Mount at approximately 1 meter height. Avoid placing near heat sources or moving foliage. |
| LEDs not flashing/illuminating. | Device not powered on or faulty unit. | Ensure the device is powered on. If the issue persists after checking batteries, contact customer support. |
Thông số kỹ thuật
- Người mẫu: XT1
- Thương hiệu: Hirisi Tackle
- Nhà sản xuất: HIRISI
- Nguồn điện: Pin chạy bằng
- Loại pin: 3 x 1.5V AAA Alkaline (not included)
- Góc cảm biến: 120 độ
- Khoảng cách phát hiện: 2-4 mét (6.5-13 feet)
- Mức âm lượng: 7 adjustable steps
- Lắp đặt: 3/8-inch thread for bankstick
- Kích thước gói hàng: 13.5 x 8.1 x 4.7 cm (5.3 x 3.2 x 1.85 inch)
- Cân nặng: 70 gram (2.5 ounce)
- ASIN: B07VM8QCB1
- UPC: 028753605747
Bảo hành và Hỗ trợ
For warranty information or technical support, please refer to the documentation provided with your purchase or contact Hirisi Tackle customer service directly. Contact details can typically be found on the manufacturer's official webtrang web hoặc thông qua nhà bán lẻ của bạn.
