BOBLOV 1296P Police Body Camera Instruction Manual

1. Nội dung gói hàng

Xác minh rằng tất cả các mục đều có trong gói hàng:

• Camera đeo người BOBLOV
• Hướng dẫn sử dụng
• Kẹp vai
• Bộ sạc xe hơi
• 2 x Lithium Ion Batteries (1950mAh each)
• Cáp USB
• Đế sạc
• Clip ngắn

Image: The package contents include the body camera, user manual, two clips, car charger, two batteries, USB cable, and charging base.

2. Thiết lập

2.1 Lắp đặt và sạc pin

The camera comes with two 1950mAh Lithium Ion batteries. Ensure batteries are fully charged before first use.

1. Insert one battery into the dedicated slot on the charging base.
2. Place the body camera onto the charging base. The base allows simultaneous charging of one battery and the camera.
3. Connect the USB cable to the charging base and a power source (e.g., wall adapter, car charger, or computer USB port).
4. Thời gian sạc đầy khoảng 3 giờ.

Image: The body camera and a spare battery are shown charging in the dual charging dock.

Thẻ nhớ 2.2

The camera supports external TF (MicroSD) cards up to 128GB. A 64GB internal storage is included.

1. Hãy tìm khe cắm thẻ TF ở bên cạnh máy ảnh.
2. Nhẹ nhàng lắp thẻ TF vào khe cắm cho đến khi nghe tiếng tách.
3. Để tháo ra, hãy ấn thẻ vào trong cho đến khi nó bật ra.

Image: The body camera features an external TF card slot, supporting cards up to 128GB for expanded storage.

3. Hướng dẫn vận hành

3.1 Bật/Tắt nguồn

Press and hold the Power button for 3 seconds to turn the camera on. To turn off, press and hold the Power button for 5 seconds.

3.2 Quay video

From standby mode, short press the Video Record button to start recording. The red light will flash, and the camera will vibrate twice. Short press again to stop recording and save the file.

3.3 Chụp ảnh

From standby mode, short press the Photo button to take a single photo. The camera will vibrate once.

3.4 Ghi âm

From standby mode, short press the Audio Record button to start audio-only recording. Short press again to stop and save.

3.5 Tầm nhìn ban đêm

The camera features automatic infrared night vision. In low light conditions, the IR lights will activate to capture clear footage up to 15 meters (approximately 49 feet) away.

Image: The body camera captures clear footage in low light, showing objects at 3 meters and 15 meters with night vision activated.

3.6 Phát lại

Use the menu buttons to navigate through recorded videos, photos, and audio files on the 2-inch LCD screen. Select a file and press the OK button to play.

3.7 Mounting and Wear

The camera comes with rotatable clips for flexible mounting options. Attach the desired clip to the back of the camera.

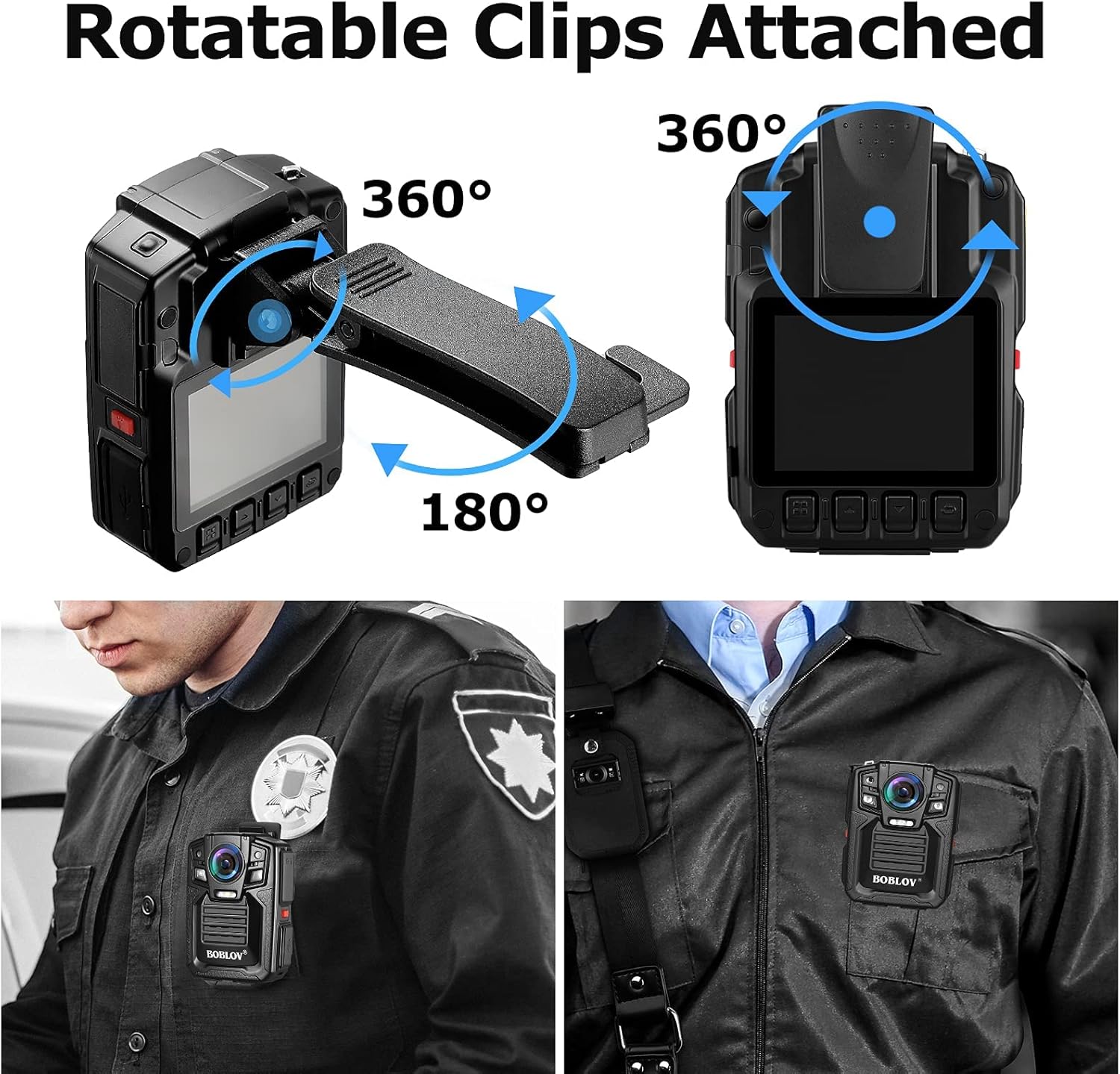

Image: The body camera is shown with rotatable clips, allowing for 360-degree rotation and 180-degree tilt for optimal positioning.

Image: A person in uniform wears the BOBLOV body camera clipped to their shirt pocket, demonstrating a typical use case.

4. Bảo trì

4.1 Vệ sinh

Wipe the camera body and lens with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.

4.2 Truyền dữ liệu

Connect the camera to a computer using the provided USB cable to transfer recorded files. The camera will appear as a removable disk drive.

4.3 cập nhật chương trình cơ sở

Kiểm tra của nhà sản xuất webcập nhật chương trình cơ sở định kỳ để đảm bảo hiệu suất tối ưu và truy cập vào các tính năng mới.

KHAI THÁC. Xử lý sự cố

6. Thông số kỹ thuật

7. Bảo hành và Hỗ trợ

For warranty information or technical assistance, please contact BOBLOV Customer Service. Refer to the user manual included in your package for specific contact details or visit the official BOBLOV webđịa điểm.

General Customer Service Email: Support@Boblov.com

8. Video sản phẩm chính thức

Below are official product videos from the seller for additional guidance and demonstrations.
