1. Giới thiệu và sản phẩmview
The CCLIFE Brake Piston Reset Tool Model 1015 is designed to facilitate the safe and efficient retraction of brake caliper pistons when replacing brake pads. This tool is essential for vehicles equipped with brake calipers that require the piston to be rotated and pushed back simultaneously, particularly common on rear brake systems.
This manual provides comprehensive instructions for the proper use, maintenance, and troubleshooting of your CCLIFE Brake Piston Reset Tool. Please read this manual thoroughly before operating the tool.
Image 1.1: The CCLIFE Brake Piston Reset Tool, including the main tool body and two common adapters (numbered 3 and 5).
2. Thông tin an toàn
Working with vehicle brake systems requires caution. Improper procedures can lead to serious injury or vehicle damage. Always adhere to the following safety guidelines:
- Mặc thiết bị bảo hộ cá nhân (PPE) phù hợpbao gồm cả kính bảo hộ và găng tay.
- Đảm bảo xe được cố định chắc chắn. Đặt kích nâng xe lên bề mặt bằng phẳng trước khi bắt đầu bất kỳ công việc nào. Không bao giờ chỉ dựa vào kích nâng xe.
- Consult your vehicle's service manual for specific brake system procedures and torque specifications.
- Không được ép dụng cụ. If the piston does not retract smoothly, re-evaluate the adapter selection and ensure the caliper is properly prepared.
- Keep brake fluid away from painted surfaces as it can damage paint. Clean up any spills immediately.
- If you are unsure about any step, seek assistance from a qualified automotive technician.
3. Thành phần sản phẩm
The CCLIFE Brake Piston Reset Tool Model 1015 typically includes the following components:
- Main Tool Body: Features a threaded shaft and a T-handle for rotation.
- Tấm áp suất: A flat plate that rests against the caliper body.
- Combined Adapter: A rotating adapter designed to engage with the brake piston's notches. This tool specifically features a right-hand thread for retraction.
- Bộ điều hợp bổ sung: Various adapters (e.g., numbered 3 and 5) to fit different piston notch patterns.
Image 3.1: The main tool with the pressure plate and two adapters (numbered 3 and 5) for different brake piston configurations.
Hình ảnh 3.2: Chi tiết view of the tool's components, including the main body, pressure plate, and adapters.
4. Thiết lập
Before using the tool, ensure you have identified the correct adapter for your vehicle's brake caliper piston. The adapters are designed to fit into the notches or patterns on the face of the brake piston.
- Chuẩn bị phương tiện: Lift the vehicle and secure it on jack stands. Remove the wheel.
- Remove Brake Caliper: Follow your vehicle's service manual to safely remove the brake caliper from its mounting bracket. Do not disconnect the brake line unless absolutely necessary. Support the caliper to prevent strain on the brake line.
- Remove Old Brake Pads: Take out the worn brake pads.
- Identify Piston Type: Observe the face of the brake piston to determine the required adapter pattern.
- Select Adapter: Choose the adapter from the kit that matches the piston's pattern.
- Công cụ lắp ráp: Attach the selected adapter to the threaded shaft of the main tool body. Ensure it is securely seated.
5. Hướng dẫn vận hành
This tool is designed for brake pistons that require both rotation and compression for retraction. The Model 1015 features a right-hand thread for this operation.
- Position the Tool: Place the pressure plate of the tool against the caliper body. Align the chosen adapter with the notches on the brake piston.
- Engage the Piston: Gently turn the T-handle clockwise to engage the adapter with the piston's notches. Ensure the adapter is firmly seated and not slipping.
- Retract the Piston: Continue to turn the T-handle clockwise. This action will simultaneously rotate and push the piston back into the caliper bore. Apply steady, even pressure.
- Monitor Piston Retraction: Observe the piston as it retracts. It should move smoothly without excessive force. If resistance is encountered, stop and re-check the alignment and adapter fit.
- Full Retraction: Continue until the piston is fully retracted, creating enough space for the new, thicker brake pads.
- Remove the Tool: Once the piston is retracted, turn the T-handle counter-clockwise to release the pressure and remove the tool from the caliper.
- Install New Pads and Caliper: Install the new brake pads and reassemble the brake caliper according to your vehicle's service manual.
Image 5.1: Various stages of the brake piston reset tool being used to retract a brake piston on a vehicle.
Image 5.2: A user operating the CCLIFE brake piston reset tool to retract a brake piston.
6. Bảo trì
Proper maintenance will extend the life of your CCLIFE Brake Piston Reset Tool.
- Vệ sinh: After each use, wipe down the tool with a clean cloth to remove any brake fluid, grease, or dirt.
- Bôi trơn: Periodically apply a light coat of general-purpose lubricant to the threaded shaft to ensure smooth operation.
- Kho: Store the tool and its adapters in a dry, clean environment, preferably in its original case, to prevent corrosion and damage.
- Điều tra: Before each use, inspect the tool for any signs of wear, damage, or bending. Do not use a damaged tool.
KHAI THÁC. Xử lý sự cố
If you encounter issues while using the tool, consider the following:
- Piston not retracting or difficult to turn:
- Ensure the correct adapter is used and properly engaged with the piston notches.
- Verify that the caliper slide pins are not seized, preventing the caliper from moving freely.
- Check for any obstructions or damage to the piston or caliper bore.
- Confirm the tool's threaded shaft is adequately lubricated.
- Adapter slipping off the piston:
- Re-align the adapter carefully with the piston notches.
- Ensure the adapter is fully seated before applying significant pressure.
- The adapter might be incorrect for your specific piston type. Double-check your vehicle's requirements.
8. Thông số kỹ thuật
| Đặc điểm kỹ thuật | Giá trị |
|---|---|
| Thương hiệu | Cuộc sống |
| Người mẫu | 1015 |
| Trọng lượng sản phẩm | 900 gam |
| Kích thước sản phẩm (D x R x C) | 45 x 34 x 26cm |
| Loại chủ đề | Right-hand thread (for piston retraction) |

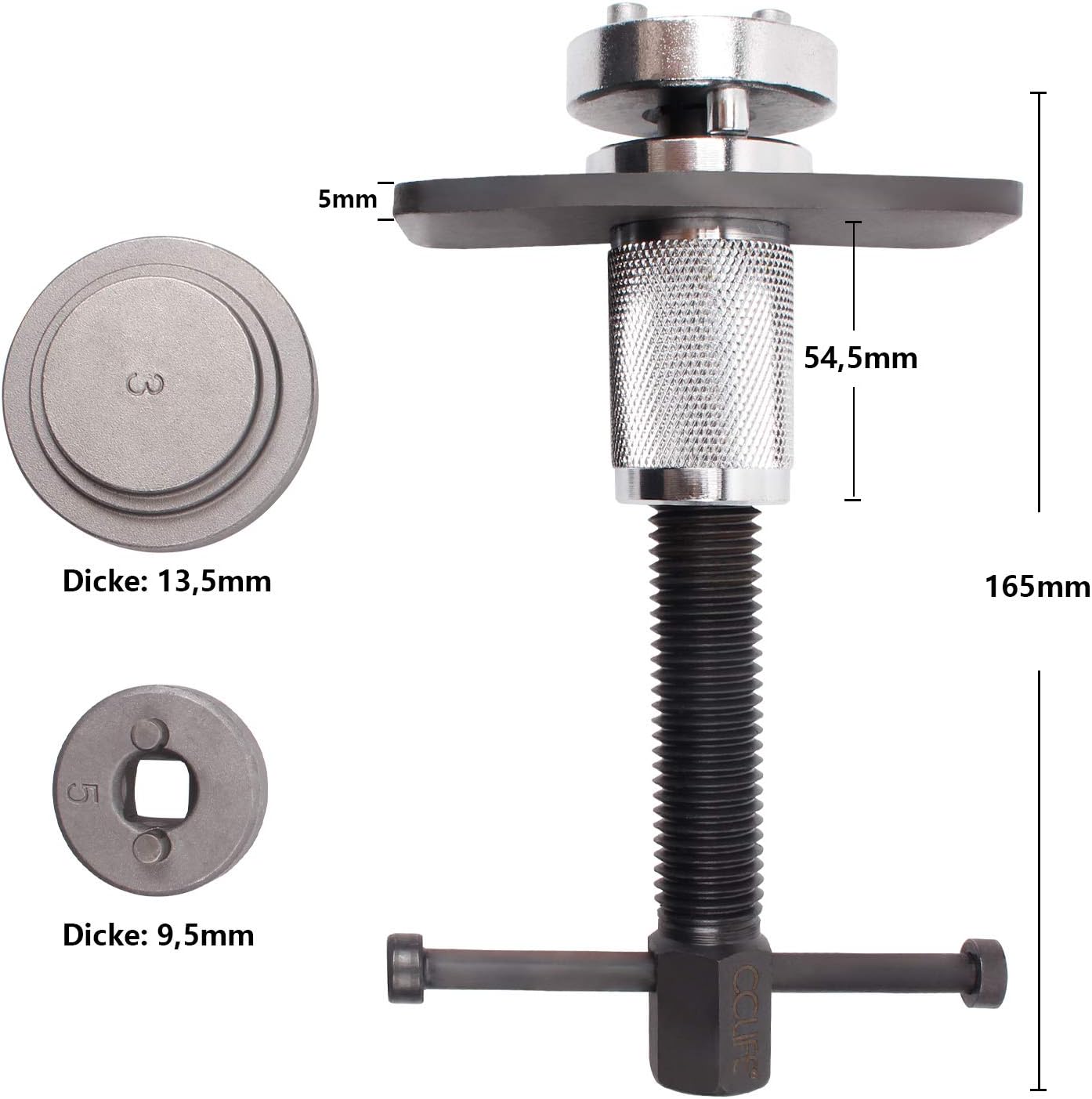

Image 8.1: Dimensional diagram of the CCLIFE brake piston reset tool and its adapters, showing key measurements.
9. Bảo hành và Hỗ trợ
For warranty information, technical support, or inquiries regarding replacement parts, please contact CCLIFE customer service through the retailer where the product was purchased or visit the official CCLIFE webVui lòng chuẩn bị sẵn số hiệu sản phẩm (1015) và thông tin mua hàng khi liên hệ với bộ phận hỗ trợ.
