Introduction to Your Manual
This Haynes Service and Repair Manual provides comprehensive instructions and detailed illustrations to assist owners in maintaining and repairing their Renault Clio vehicles. The manual covers models manufactured between June 2001 and 2005, including both petrol and diesel engine variants. It is designed to help you keep your vehicle in optimal running condition and perform various tasks, from routine maintenance to more complex repairs.
Image: Front cover of the Haynes Renault Clio Service and Repair Manual, featuring a red Renault Clio car.
The manual is structured to guide you through each procedure with clear, step-by-step instructions. Tasks are graded by difficulty using a 'spanner rating' system, indicating whether a job is suitable for a novice or requires expert experience. Practical tips and shortcuts, known as 'Haynes Hints' and 'Tool Tips', are included to simplify tasks and suggest alternative methods for parts removal without specialized tools.
Image: An internal page from the manual highlighting features like step-by-step instructions, spanner ratings, Haynes Hints, and Tool Tips, alongside images of mechanics working on a car.
Sử dụng Hướng dẫn sử dụng của bạn
This manual is based on a complete stripdown and rebuild of the Renault Clio, ensuring that all instructions are derived from practical experience. It emphasizes DIY-friendly techniques, making it accessible for owners with varying levels of mechanical expertise. The content is supported by over 700 pictures and diagrams to visually aid in understanding each procedure.
Image: A page detailing Haynes' methodology, including basing manuals on stripdowns and rebuilds, using DIY-friendly techniques, and saving time on fault diagnosis.
To effectively use this manual, locate the relevant section for your task. Each section begins with an overview, followed by detailed steps. Pay close attention to safety warnings and notes provided throughout the text. The manual also includes a 'Fault Finder' section to assist in diagnosing common issues, helping to avoid unnecessary time spent on troubleshooting.
Quy trình bảo trì
Regular maintenance is crucial for the longevity and performance of your Renault Clio. This manual covers a wide range of maintenance tasks, from simple weekly checks to more involved servicing procedures for both petrol and diesel engines.
Kiểm tra hàng tuần
- Mức dầu động cơ
- Mức nước làm mát
- Mức dầu phanh
- Screen washer fluid level
- Tình trạng và áp suất lốp
- Lưỡi gạt nước
- Ắc quy
- Hệ thống điện
Routine Servicing (Diesel Models Example)
For diesel models, specific maintenance procedures are outlined, such as air filter and fuel filter renewal.
Image: A page illustrating maintenance procedures for diesel models, specifically air filter element renewal and fuel filter renewal, with accompanying photographs.
Air Filter Element Renewal: This procedure should be performed every 36,000 km or every 4 years. It involves disconnecting the air intake pipe, undoing retaining screws, removing the air filter housing cover, and replacing the element. Detailed steps with illustrations guide the user through this process.
Fuel Filter Renewal: This involves disconnecting fuel lines, draining the filter, and replacing it. Specific instructions are provided for different engine types and configurations.
Engine In-Car Repairs (Petrol Models Example)
The manual provides detailed guidance for in-car engine repairs, such as adjusting valve clearances or checking timing marks.
Image: A page detailing 1.2 litre petrol engine in-car repair procedures, including aligning TDC timing marks on the camshaft sprocket and valve clearance adjustments.
TDC Timing Mark Alignment: Instructions are given for aligning the TDC timing mark on the camshaft sprocket, crucial for engine timing. This involves removing the upper engine mounting bracket/upper timing belt cover and using specific reference marks.
Valve Clearances Adjustment: Procedures for checking and adjusting valve clearances are outlined, with notes on when this adjustment is necessary.
Fuel and Exhaust Systems (Petrol Models Example)
The manual also covers components of the fuel and exhaust systems, detailing removal and installation procedures.

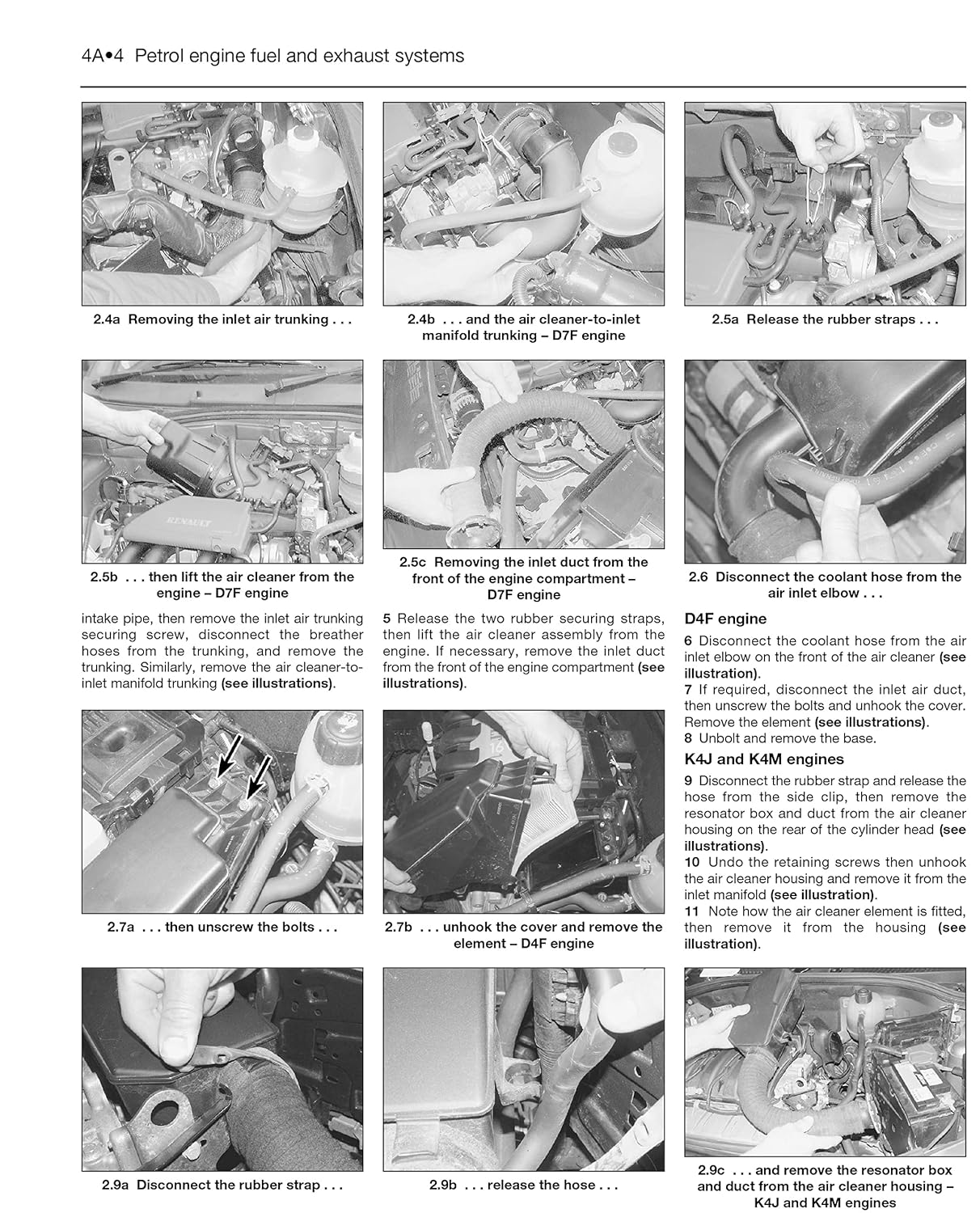

Image: A page illustrating various steps for working on the petrol engine fuel and exhaust systems, such as removing air trunking, air cleaner components, and hoses.
Removing Inlet Air Trunking and Air Cleaner: Step-by-step instructions with multiple images show how to remove the inlet air trunking, air cleaner-to-inlet manifold trunking, and the air cleaner assembly from the engine compartment. This often involves releasing rubber straps, unscrewing bolts, and disconnecting hoses.
Xử lý sự cố
The manual includes a dedicated 'Fault Finder' section designed to help diagnose common vehicle problems. This section provides guidance on identifying symptoms and pinpointing potential causes, which can save time and effort during repairs. Refer to the 'Fault Finding' index for specific issues.
Thông số kỹ thuật
Detailed specifications for various components and fluids are provided to ensure correct maintenance and repair procedures are followed.
Fluid Capacities and Specifications (Petrol Models Example)
Image: A page displaying servicing specifications for petrol models, including lubricants, fluids, capacities, cooling system, fuel system, ignition system, brakes, and torque wrench settings.
| Loại | Mục | Đặc điểm kỹ thuật |
|---|---|---|
| Engine Oil Capacities | 1.2 litre D7F engine | 3.5 litres (excluding oil filter) / 4.0 litres (including oil filter) |
| 1.4 litre K4J engine | 4.0 litres (excluding oil filter) / 4.5 litres (including oil filter) | |
| 1.6 litre K4M engine | 4.25 litres (excluding oil filter) / 4.9 litres (including oil filter) | |
| Difference between MAX and MIN dipstick marks | 1.5 to 2.0 litres depending on engine | |
| Cooling System Capacities | 1.2 litre D7F engine | 4.5 lít |
| 1.4 litre K4J engine | 5.0 lít | |
| 1.6 litre K4M engine | 5.7 lít | |
| Hộp số tự động | Dung tích | 6.0 lít |
| Bình nhiên liệu | Dung tích | 50 lít |
| Antifreeze Mixture | Protection to -25°C | 35% Antifreeze / 65% Water |
| Protection to -40°C | 50% Antifreeze / 50% Water | |
| Hệ thống nhiên liệu | Specified idle speed (non-adjustable) | 750 ± 50 vòng/phút |
| Idle mixture CO content (non-adjustable) | 0.5% maximum (0.3% at 2500 rpm) | |
| Hệ thống đánh lửa | Lệnh bắn | 1-3-4-2 |
| Location of No.1 cylinder | Flywheel end | |
| Thời điểm đánh lửa | Controlled by ECU – see Chapter 5B | |
| Bugi đánh lửa | Kiểu | Bosch VR 8 SE, Champion REA 8 MCL, Bosch FR 7 DE, Eyquem RFC 50 LZ 2E |
| Khoảng cách điện cực | 0.9mm | |
| 1.2 litre D4F engine | 0.9mm | |
| All other engines | 0.9mm | |
| phanh | Front disc brakes: Pad thickness (including backing) | New: 18.0 mm, Minimum thickness: 6.0 mm |
| Rear disc brakes: Pad thickness (including backing) | New: 15.0 mm, Minimum thickness: 6.0 mm | |
| Rear drum brakes: Shoe thickness (friction material only) | New: 4.6 mm (leading), 3.8 mm (trailing) | |
| Độ day tôi thiểu | 2.0mm | |
| Torque wrench settings: Roadwheel nuts | 90 Nm / 66 lbf ft | |
| Bugi đánh lửa | Mô-men xoắn | 25 to 30 Nm / 18 to 22 lbf ft |
Thông tin chung về sản phẩm
- Nhà xuất bản: Công ty TNHH JH Haynes & Co
- Ngôn ngữ: Tiếng Anh
- ISBN-10: 0857339303
- ISBN-13: 978-0857339300
- Trọng lượng sản phẩm: 1.19 pound
- Kích thước: 8.27 x 0.71 x 10.55 inch
Bảo hành và Hỗ trợ
This manual serves as a comprehensive guide for vehicle maintenance and repair. It does not provide a warranty for the vehicle itself or for any repairs performed using its instructions. For inquiries regarding the content of this manual or for publisher support, please contact J H Haynes & Co Ltd directly.
