Hướng dẫn sử dụng máy làm sạch bằng hơi nước đa năng Phueut CB-08C 1800W

1. Giới thiệu

Thank you for choosing the Phueut CB-08C 1800W Multipurpose Steam Cleaner. This powerful and versatile appliance is designed to provide deep, chemical-free cleaning for various surfaces in your home and car. Please read this manual thoroughly before first use to ensure safe and efficient operation.

The Phueut CB-08C steam cleaner utilizes 1800W of power to generate high-pressure, high-temperature steam (up to 230°F) for effective cleaning. It features a 1.5L water tank for extended cleaning sessions and comes with 28 accessories for diverse cleaning tasks.

Image 1.1: The Phueut CB-08C Steam Cleaner with its complete set of 28 accessories, including brushes, nozzles, mop head, and cloths.

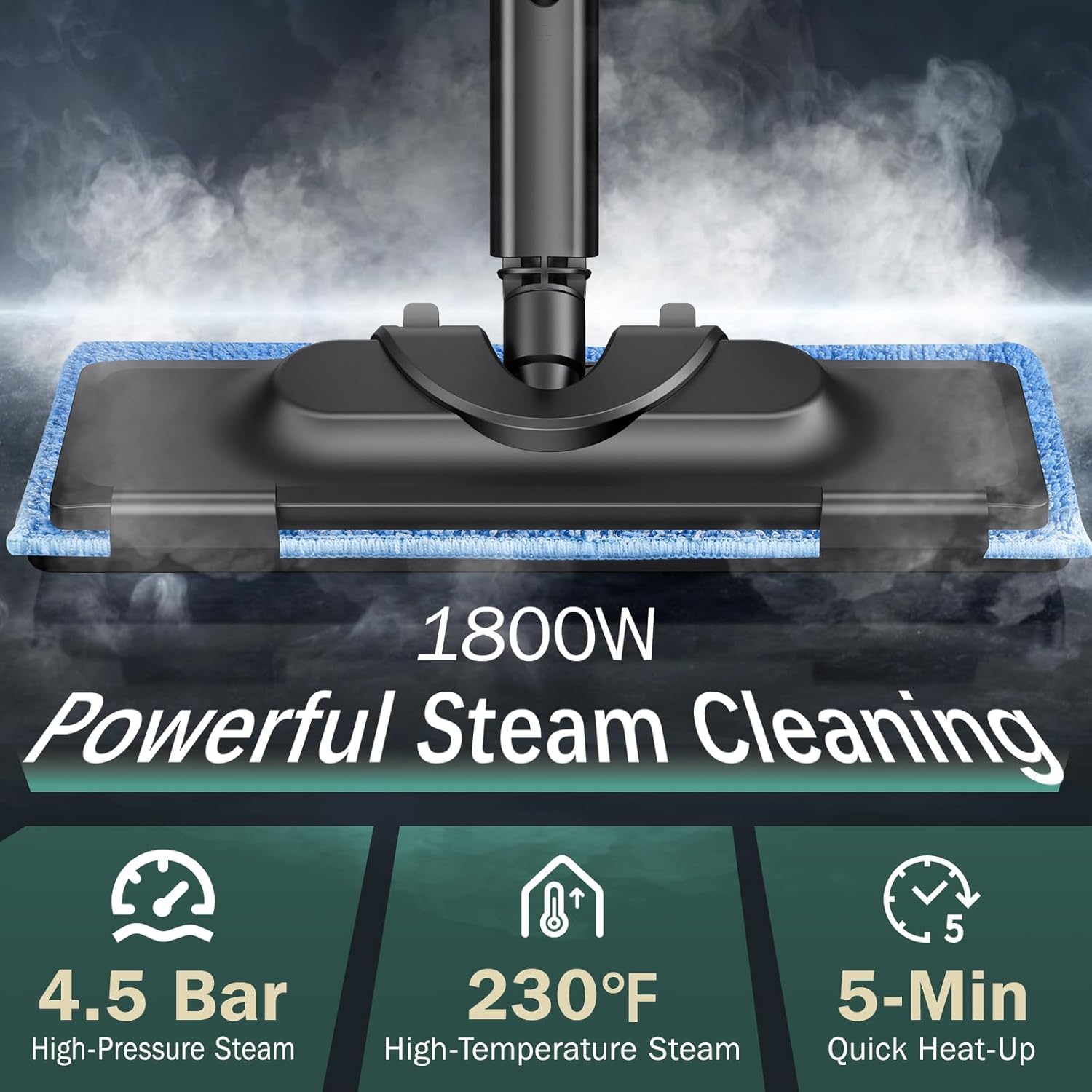

Image 1.2: Key features of the steam cleaner, highlighting 1800W power, 4.5 Bar high-pressure steam, 230°F high-temperature steam, and a 5-minute quick heat-up time.

This steam cleaner offers a chemical-free cleaning solution, making it safe for households with children and pets. It effectively removes grease and grime using only water.

Image 1.3: Illustrates the chemical-free cleaning benefit, showing a clean environment safe for children and pets.

2. Hướng dẫn an toàn

Please read and understand all safety warnings and instructions before using this appliance. Failure to follow the warnings and instructions may result in electric shock, fire, or serious injury.

Các Biện pháp Phòng ngừa An toàn Chung:

• Always unplug the appliance from the electrical outlet before filling with water, cleaning, or performing maintenance.
• Không để thiết bị không có người trông coi khi đang cắm điện.
• Do not allow children to operate the steam cleaner. Close supervision is necessary when the appliance is used near children or pets.
• Chỉ sử dụng theo đúng mô tả trong sách hướng dẫn này. Chỉ sử dụng phụ kiện do nhà sản xuất khuyến nghị.
• Không sử dụng với dây hoặc phích cắm bị hỏng. Nếu thiết bị không hoạt động như bình thường, bị rơi, bị hỏng, để ngoài trời hoặc bị rơi vào nước, hãy trả thiết bị đến trung tâm bảo hành.
• Không kéo hoặc xách bằng dây, sử dụng dây làm tay cầm, đóng cửa bằng dây, hoặc kéo dây xung quanh các cạnh hoặc góc sắc nhọn. Giữ dây tránh xa bề mặt được nung nóng.
• Không cầm phích cắm hoặc thiết bị bằng tay ướt.
• Do not direct steam at people, animals, or electrical appliances. Steam is very hot and can cause burns.
• The safety cap ensures a tight seal, preventing steam leaks. Never attempt to open the safety cap while the unit is pressurized or hot. Allow the unit to cool down and release all steam before opening.
• Use only distilled or demineralized water to prevent mineral scale build-up and prolong the life of the appliance.

For more detailed safety information, please refer to the official Thông tin an toàn (PDF).

3. Nội dung gói hàng

Your Phueut CB-08C Steam Cleaner package includes the following items:

Image 3.1: Visual representation of all 28 accessories included with the Phueut CB-08C Steam Cleaner.

• Steam Cleaner Unit
• Vòi phun chính
• Heat-resistant Glove
• Vòi phun hơi nước
• Fabric-Cleaning Accessory
• Glass-Cleaning Accessory
• Phễu
• Cốc đong
• Grout Brushes (2)
• Brass Brushes (2)
• Nylon Brushes (2)
• Máy cuốn dây nguồn
• Đũa phép mở rộng (2)
• Mop Head Connector
• Đầu lau
• tàu lượn thảm
• Tấm sợi nhỏ (2)
• Towel Sleeves (2)
• Sealing Rings (6)

4. Thiết lập

4.1 Đổ đầy bể nước

1. Ensure the steam cleaner is unplugged from the power outlet.
2. Unscrew the safety cap on the top of the unit.
3. Using the provided measuring cup and funnel, carefully pour up to 1.5 liters (50.7 oz) of distilled or demineralized water into the tank. Không đổ quá đầy.
4. Securely screw the safety cap back on.

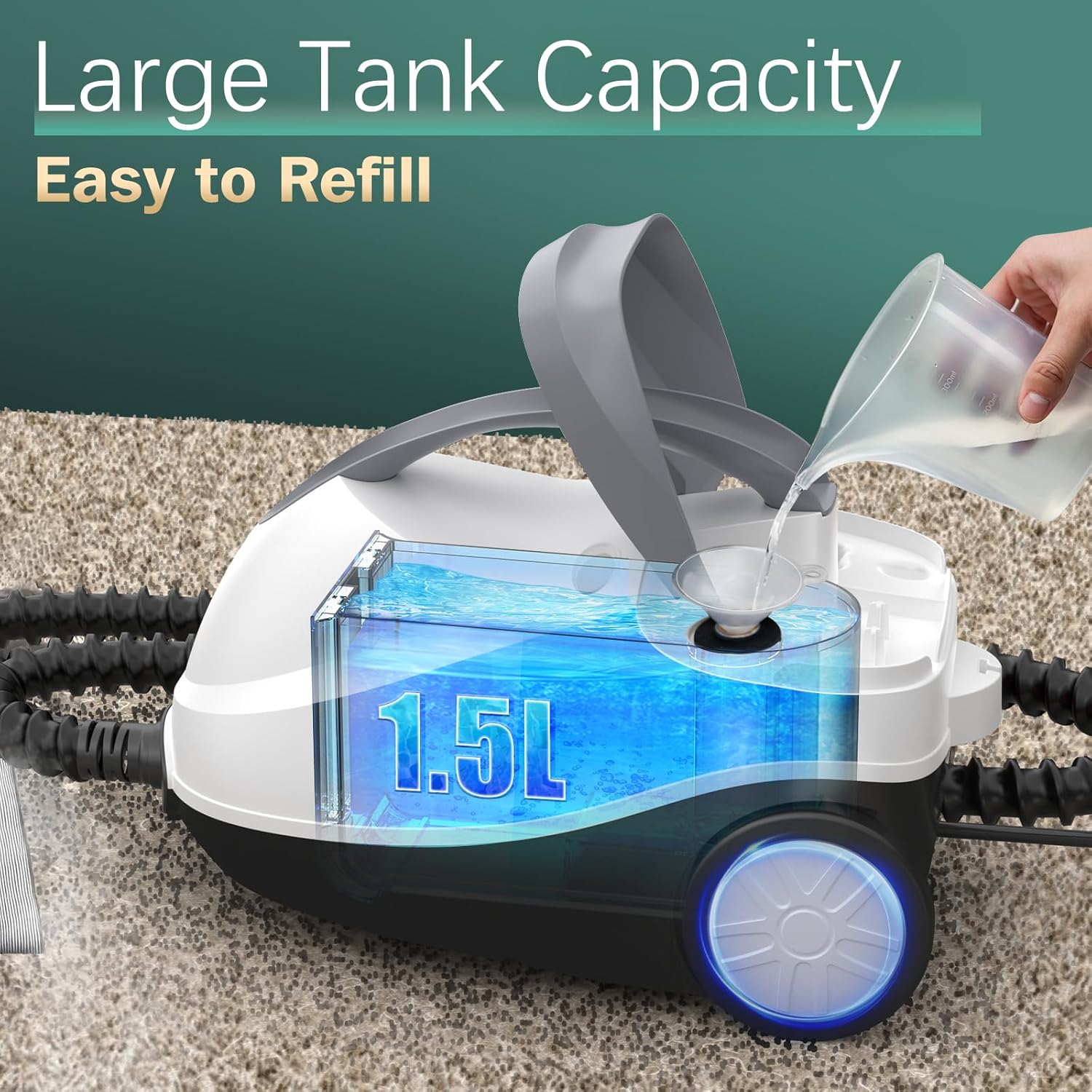

Image 4.1: Demonstrates the process of filling the 1.5L water tank.

4.2 Phụ kiện kèm theo

Select the appropriate accessory for your cleaning task and securely attach it to the steam gun or extension wands. Ensure all connections are firm to prevent steam leakage.

4.3 kết nối nguồn

Plug the power cord into a grounded electrical outlet. The unit is designed for 110 Volts (AC) power.

5. Hoạt động

5.1 Bật nguồn và làm nóng

1. After filling the tank and connecting accessories, turn on the power switch.
2. The steam cleaner will begin heating. This typically takes about 5 minutes. The LED indicator light will turn green when the unit is ready to produce steam.

5.2 Adjusting Steam Intensity

The steam cleaner features an adjustable steam control dial on the handle. Turn the dial from "MIN" for minimum steam to "MAX" for maximum steam output, allowing you to customize the steam intensity for different cleaning needs.

5.3 Using the Steam Trigger and Lock

• Chế độ thủ công: Slide the steam button forward to release steam instantly.
• Automatic Mode (Continuous Steam): Turn the steam lock to the right to engage continuous steam, freeing your hand from holding the button. Release it to stop the steam.

Image 5.1: Details of the steam trigger with lock function and steam adjustment dial for hassle-free steaming.

5.4 Cleaning Various Surfaces

The Phueut CB-08C is designed for multipurpose cleaning. Refer to the table below for recommended accessories and techniques:

Image 5.2: Demonstrates the versatility of the steam cleaner with different attachments for various surfaces.

Image 5.3: Illustrates the deep cleaning capability, showing a significant improvement on a stove top after steam cleaning.

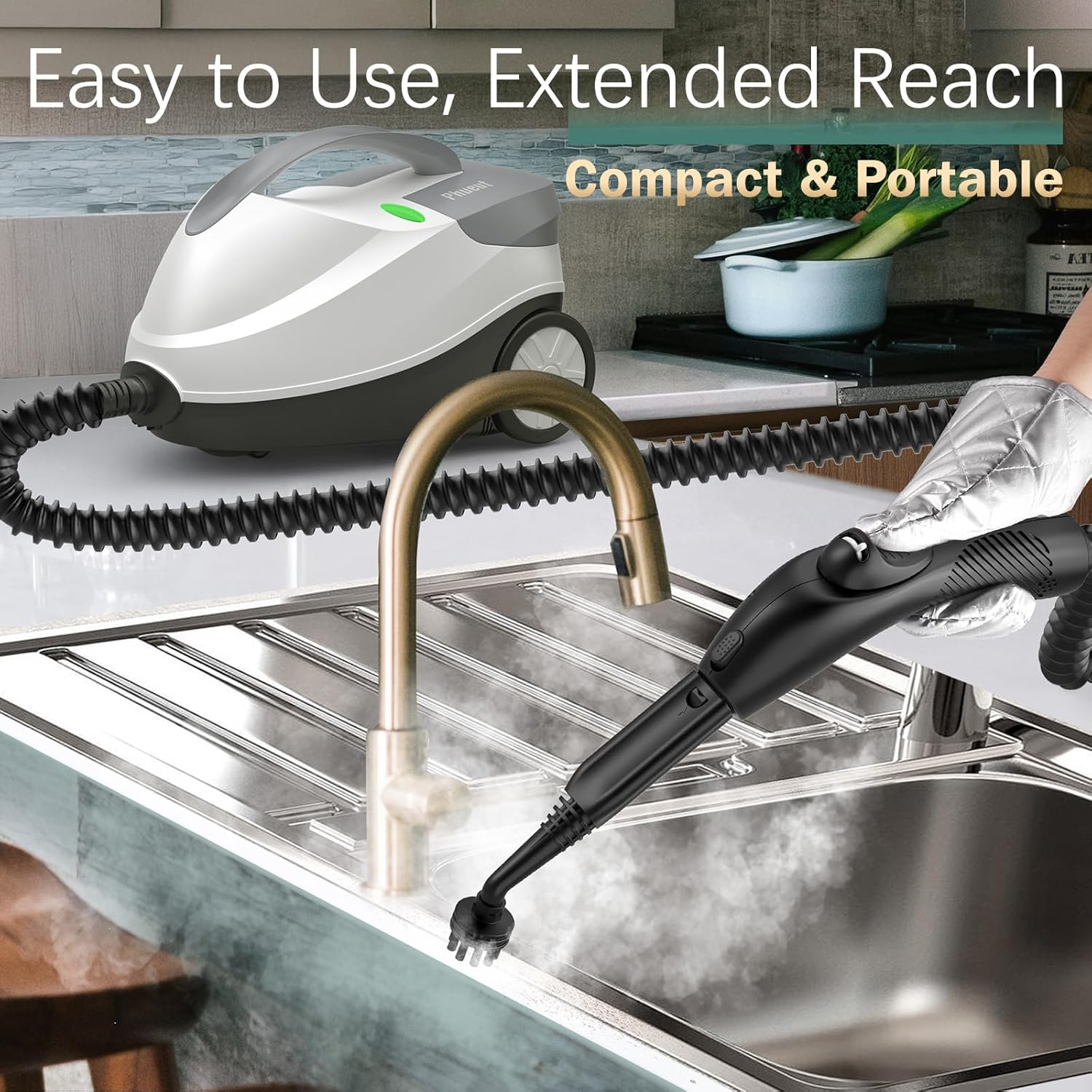

Image 5.4: The steam cleaner in use, demonstrating its ease of use, extended reach, and compact, portable design for cleaning various areas like a kitchen sink.

6. Bảo trì

6.1 Sau mỗi lần sử dụng

1. Rút phích cắm và làm mát: Always turn off the power switch and unplug the steam cleaner. Allow the unit to cool down completely before handling or storing.
2. Release Residual Steam: If there is still pressure in the tank, hold down the steam trigger (you can lock the steam switch for continuous steam) to accelerate the release of steam until no more steam is emitted.
3. Bể chứa nước rỗng: Once the unit is cool and depressurized, carefully unscrew the safety cap and empty any remaining water from the tank.
4. Loosen Safety Cap: After emptying, loosen the safety cap by one turn. This prevents the cap from becoming difficult to open over time due to pressure changes or residue.
5. Phụ kiện sạch: Rinse or wipe down all used accessories. Microfiber pads and towel sleeves can be machine washed.

6.2 Lưu trữ

Bảo quản máy làm sạch bằng hơi nước và các phụ kiện ở nơi khô ráo, thoáng mát, tránh ánh nắng trực tiếp và xa tầm tay trẻ em.

6.3 Tẩy cặn (Khuyến nghị)

To prevent mineral build-up, especially if using tap water (though distilled water is highly recommended), periodically descale the unit. Consult the Hướng dẫn khắc phục sự cố (PDF) for detailed descaling instructions.

KHAI THÁC. Xử lý sự cố

This section addresses common issues you might encounter with your Phueut CB-08C Steam Cleaner.

Các vấn đề thường gặp và giải pháp:

• Q1: Why is the steam ready light not on while heating?
  A1: The steam ready light does not change during heating. Once heating is complete (approximately 5-6 minutes), the light will turn green. If the water tank runs out of water, the light will turn red, indicating it's time to refill.
• Q2: Why can't I open the safety cap immediately after use?
  A2: The safety cap cannot be opened immediately because the steamer still contains steam and pressure. To safely release the steam and open the cap, first turn off the power and unplug the device. Then, hold down the steam trigger to accelerate the release of steam. Once the steam has been fully released and the device has cooled down, you can safely open the cap.
• Q3: How much water should I add?
  A3: We recommend filling the steamer with no more than 50.7 oz (1.5 L) of water. Overfilling may cause leaks during heating and use. Always unplug the device before refilling to avoid burns.
• Q4: Why is it important to loosen the cap after each use?
  A4: If left tightly closed, the cap may become difficult to open over time. To avoid this, please loosen the cap by one turn after each use.
• Q5: Do I need to use a cleaner to remove grease?
  A5: It depends on the level of grease. High-temperature steam can soften most grease, and a simple wipe will remove it. For heavier grease, you may want to spray a cleaner first, then use the high-pressure steam to clean it off. Note: Only water should be added to the water tank—do not add any cleaning agents.

For further assistance, please consult the comprehensive Hướng dẫn khắc phục sự cố (PDF).

8. Thông số kỹ thuật

9. Bảo hành & Hỗ trợ

9.1 Thông tin bảo hành

Phueut provides a 2-year warranty for the CB-08C Multipurpose Steam Cleaner, ensuring quality and performance. For detailed terms and conditions, please refer to the official Bảo hành (PDF) tài liệu.

9.2 Hỗ trợ khách hàng

If you have any questions, concerns, or require technical assistance, please contact Phueut customer support. Refer to your product packaging or the official Phueut webtrang web để biết chi tiết liên hệ.
