PawHut Pressure-Mounted Pet Gate Instruction Manual

1. Giới thiệu và kết thúcview

Thank you for choosing the PawHut Pressure-Mounted Pet Gate. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new pet gate. Please read all instructions carefully before assembly and use, and retain this manual for future reference.

This pet gate is designed to create a safe barrier for pets within your home, suitable for doorways, stairways, and hallways. Its pressure-mounted design allows for easy installation without drilling.

Các tính năng chính:

• Chiều rộng có thể điều chỉnh: Fits openings from 29.1"-31.5" (74-80cm).
• Double-Locking System: Features a top lock and two rotatable locks at the bottom for enhanced security.
• Thao tác bằng một tay: The top lock can be opened with a single hand by sliding both ends simultaneously and lifting.
• Opens Both Ways: The gate swings open in both directions for convenient passage.
• Chức năng tự động đóng: The gate automatically closes when its opening angle is less than 90 degrees. It remains open when pushed past 90 degrees.
• Vật liệu chắc chắn: Constructed from spray-treated metal with a lead-free surface for durability and pet safety.
• Lắp ráp dễ dàng: Pressure-mounted installation simplifies setup for various openings.

Image 1.1: PawHut Pet Gate with a Beagle.

2. Thông tin an toàn

CẢNH BÁO: Improper installation or use can result in serious injury. Always follow these instructions carefully.

• Hàng rào an toàn này chỉ dành cho mục đích sử dụng trong gia đình.
• Regularly check that the safety barrier is correctly installed and secure.
• Không sử dụng hàng rào an toàn nếu bất kỳ thành phần nào bị hỏng hoặc thiếu.
• Never climb over the gate.
• Ensure the gate is securely closed and locked after each passage.
• This gate is designed for pets. Do not use it as a child safety gate without verifying it meets relevant child safety standards.
• Keep small children away from the gate during installation.
• Always measure your opening accurately before purchasing to ensure proper fit.

3. Nội dung gói hàng

Upon opening the package, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• 1 x Main Gate Frame
• 4 x Pressure Adjustment Bolts
• 4 x Wall Cups (optional for added stability)
• Hướng dẫn sử dụng

Hình ảnh 3.1: Ví dụample of PawHut Pet Gate components.

4. Thông số kỹ thuật

Image 4.1: Product Dimensions and Pet Shoulder Height Guide.

5. Thiết lập và Cài đặt

The PawHut Pet Gate is designed for pressure-mounted installation, which means it uses tension to secure itself in an opening. No drilling is typically required.

Các bước cài đặt:

1. Tháo hộp và kiểm tra: Remove all components from the packaging and ensure all parts listed in Section 3 are present and undamaged.
2. Vị trí ban đầu: Position the main gate frame within the desired opening (doorway, hallway, or stair opening). The gate will appear slightly bent or misaligned before tension is applied; this is normal.
3. Insert Pressure Bolts: Insert the four pressure adjustment bolts into the holes at each corner of the gate frame.
4. Điều chỉnh độ căng: Hand-tighten each pressure bolt until the gate is snug against the walls. Ensure the gate is level and centered in the opening.
5. Fine-Tune Adjustment: Continue to tighten the pressure bolts evenly, turning each bolt a few rotations at a time. The gap between the gate frame and the locking mechanism should reduce to approximately 2-3mm. This indicates sufficient tension for secure installation.
6. Kiểm tra bảo mật: Once tightened, firmly push and pull on the gate to ensure it is securely mounted and does not move. If it moves, tighten the bolts further until stable.
7. Optional Wall Cups: For added stability or to protect wall surfaces, the included wall cups can be placed between the pressure bolts and the wall.

Image 5.1: Pet gate installed in various locations.

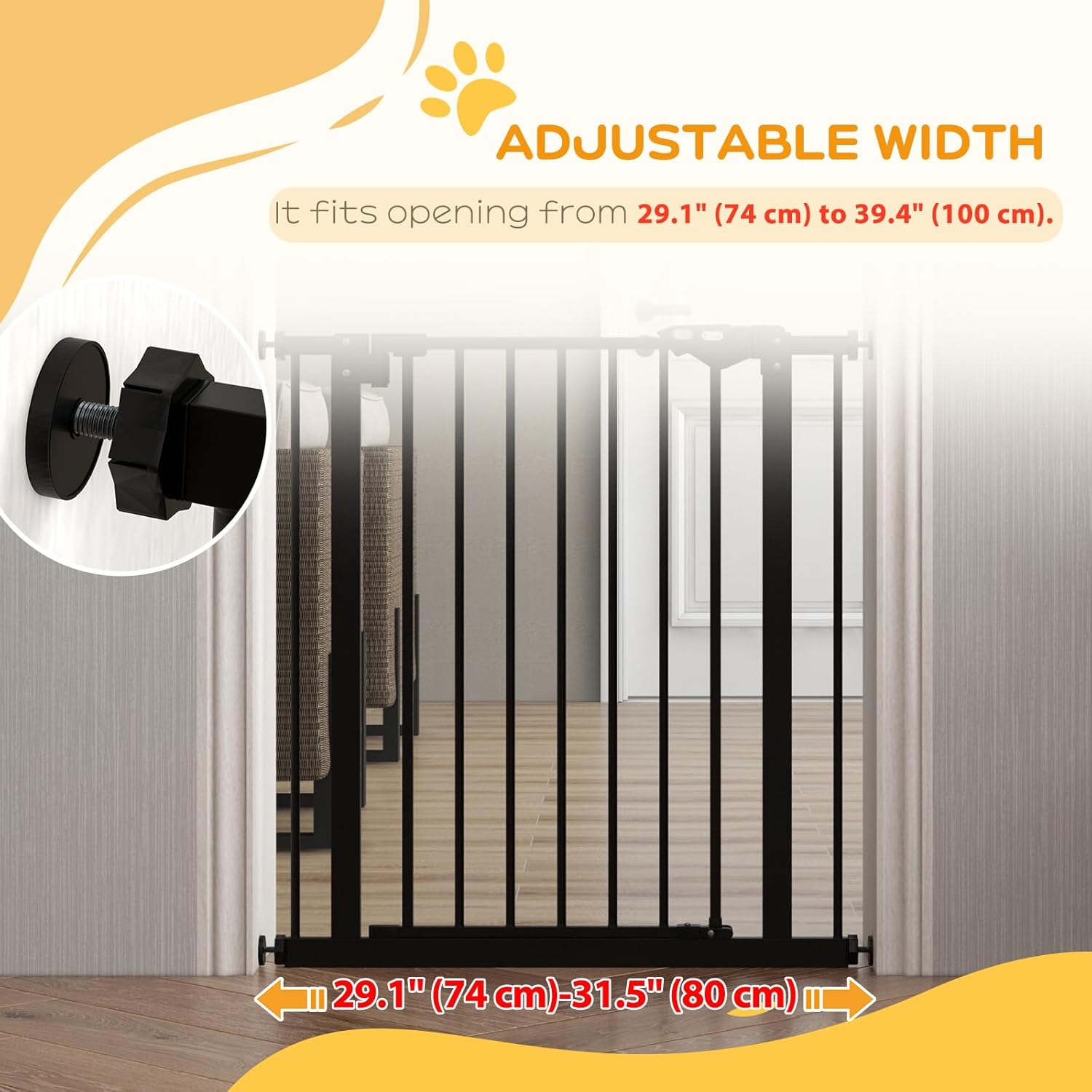

Image 5.2: Adjustable width mechanism.

Image 5.3: Detail of the pressure mount.

6. Hướng dẫn vận hành

Mở cổng:

1. Top Lock: Locate the top locking mechanism. Slide both ends of the lock simultaneously towards the center, then lift the gate door to open. This can typically be done with one hand.
2. Bottom Rotatable Locks: The gate also features two rotatable locks at the bottom. These provide additional security and can be used to restrict the gate from swinging in a specific direction if desired.

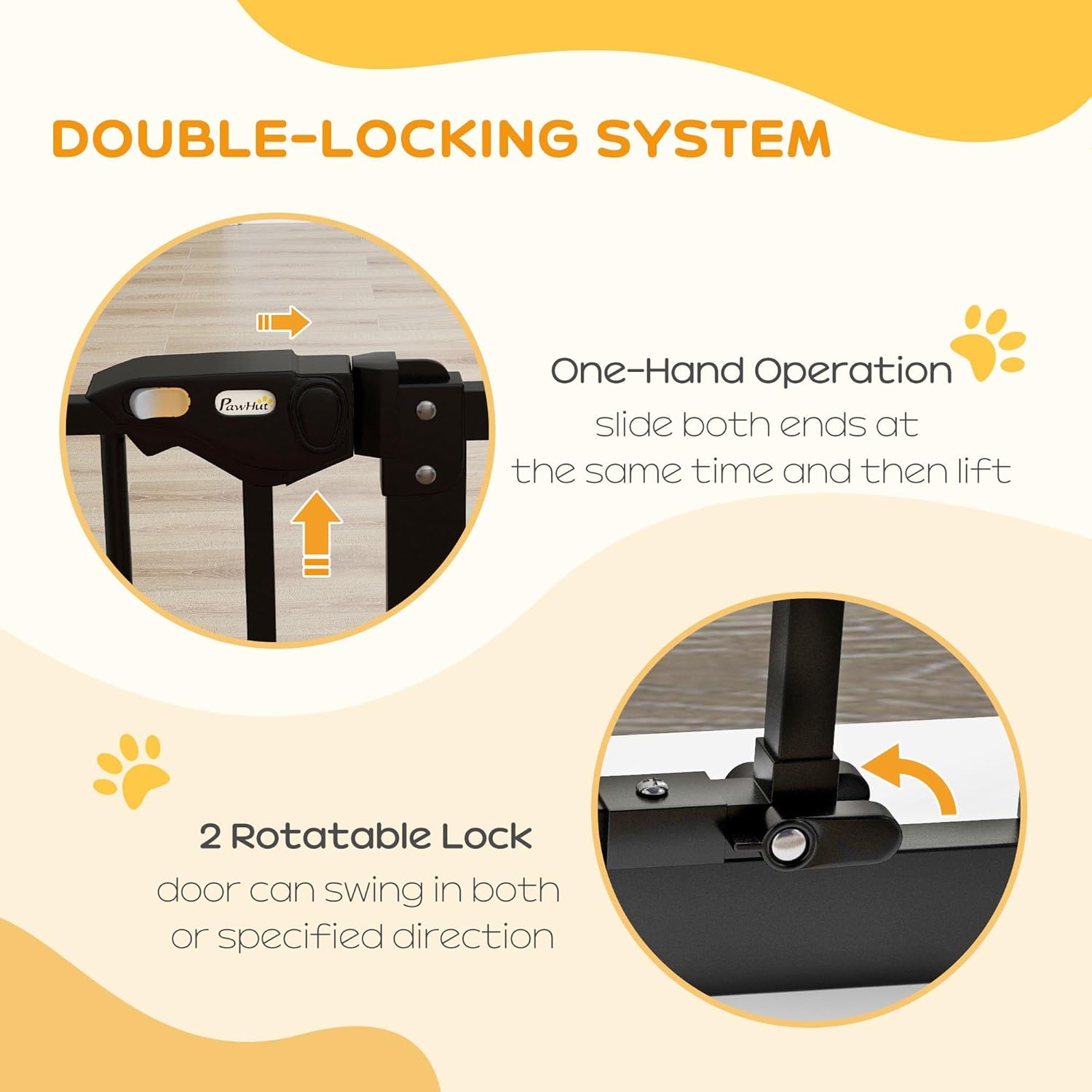

Image 6.1: Double-Locking System and One-Hand Operation.

Đóng cổng:

• Tính năng tự động đóng: When the gate is opened to an angle less than 90 degrees, it will automatically swing back and close itself.
• Manual Close: If the gate is opened beyond 90 degrees, it will remain open. To close it, gently push the gate door until it latches securely.
• Always ensure the gate is fully latched and secure after passing through.

Image 6.2: Auto-Close Functionality.

7. Bảo trì

Regular maintenance will help ensure the longevity and safe operation of your pet gate.

• Vệ sinh: Lau cổng bằng khăn mềm.amp vải và xà phòng nhẹ. Tránh sử dụng chất tẩy rửa có tính mài mòn hoặc hóa chất mạnh vì chúng có thể làm hỏng lớp hoàn thiện.
• Điều tra: Periodically check all parts for wear, damage, or loose connections. Ensure the pressure bolts remain tight and the gate is securely mounted.
• Bôi trơn: If the hinge mechanism becomes stiff, apply a small amount of silicone-based lubricant to the moving parts.

KHAI THÁC. Xử lý sự cố

• Gate does not fit the opening:
      a. Ensure your opening width is within the specified range of 29.1"-31.5" (74-80cm).
      b. Re-adjust the pressure bolts to extend or retract as needed.
• Gate is not secure/wobbles:
      a. Tighten all four pressure bolts evenly until the gate is firm in the opening. The gap at the latch should be minimal (2-3mm).
      b. Ensure the mounting surface is flat and stable.
• Gate does not latch properly:
      a. Check if the gate is level. Uneven installation can prevent proper latching.
      b. Ensure sufficient tension is applied via the pressure bolts. The gate frame should be slightly compressed.
• Cổng khó mở/đóng:
      a. Check for any obstructions in the hinge or latch mechanism.
      b. Apply a small amount of silicone lubricant to the hinges if they are stiff.

9. Bảo hành và Hỗ trợ

This PawHut Pet Gate comes with a Bảo hành 90 ngày đối với lỗi do nhà sản xuất. kể từ ngày mua. Bảo hành này bao gồm các lỗi về vật liệu và tay nghề trong quá trình sử dụng bình thường.

The warranty does not cover damage caused by improper installation, misuse, abuse, accidents, modifications, or normal wear and tear.

Hỗ trợ khách hàng:

For warranty claims, technical assistance, or missing parts, please contact the manufacturer:

Nhà sản xuất: Aosom Canada

Địa điểm kinh doanh: Markham, Ontario, CA

Điện thoại: 1-416-792-6088

Please have your product model number (29.1"-31.5"W x 30.3"H) and proof of purchase available when contacting support.
