1. Sản phẩm hếtview
The VEVOR ZXDC12V-1.6KW-D-12L hydraulic power unit is designed for various heavy-duty lifting and pressing applications. It features a robust 12V DC motor with 1.6 kW power and a 11-liter (12-quart/3-gallon) reservoir. This single-acting unit provides stable and reliable lifting operations, making it suitable for dump trucks, lift gates, scissor lifts, and other hydraulic equipment.
Hình 1.1: VEVOR 12V DC Single-Acting Hydraulic Pump. This image shows the hydraulic pump unit with its 12-quart (3-gallon) reservoir, 3200 psi maximum relief pressure, and 12V DC motor, positioned in front of a dump truck, illustrating its intended application.
Key features include high power performance, quick lifting capabilities, and a durable construction designed for longevity. The unit comes pre-assembled, requiring only the addition of hydraulic oil and connection of power and hoses for operation.
2. Hướng dẫn an toàn
Read and understand all safety warnings and instructions before installing, operating, or maintaining this hydraulic pump. Failure to follow these instructions may result in serious injury or property damage.
- An toàn điện: Đảm bảo nguồn điện phù hợp với lưu lượng của máy bơmtage (DC 12V). Disconnect power before performing any maintenance or installation. Use appropriate wiring and circuit protection.
- Chất lỏng thủy lực: Use only recommended hydraulic fluid. Avoid skin contact and inhalation of vapors. Dispose of used fluid responsibly.
- Nguy cơ áp suất: Hydraulic systems operate under high pressure. Never attempt to disconnect hoses or fittings while the system is pressurized. Always relieve pressure before servicing.
- Cài đặt: Mount the pump securely on a stable surface. Ensure all connections are tight and leak-free.
- Hoạt động: Do not exceed the pump's maximum pressure or flow rate. Keep hands and clothing clear of moving parts.
- BẢO TRÌ: Regularly inspect the pump for wear, damage, or leaks. Replace worn components immediately.
- Thiết bị bảo vệ cá nhân (PPE): Always wear appropriate PPE, including safety glasses, gloves, and protective clothing, when working with hydraulic systems.
3. Thành phần sản phẩm
The VEVOR hydraulic power unit consists of the following main components:
- Động cơ DC: 12V, 1.6 kW motor for powerful operation.
- Bơm thủy lực: Single-acting mechanism for lifting.
- Hồ chứa: 11-liter (12-quart/3-gallon) capacity, made of stainless steel for durability.
- Remote Control Switch: Wired remote for convenient operation (UP/DOWN buttons).
- SAE#6 Adapter: Included for versatile connection.
- Oil Refill Port: For adding hydraulic fluid.
- Oil Tube Connector (M18×1.5): For hydraulic line connection.
- Đầu cực của pin: For connecting to a 12V battery.
Hình 3.1: Component Diagram. This diagram illustrates the main components of the hydraulic power unit, including the hydraulic oil inlet, oil tube connector, battery terminals, oil refill port, remote switch, and SAE#6 connector.
4. Hướng dẫn thiết lập
The hydraulic pump is delivered pre-assembled. Follow these steps for initial setup:
- Lắp đặt: Securely mount the hydraulic power unit to a stable, flat surface on your equipment (e.g., dump trailer, lift gate). Ensure it is protected from excessive vibration and environmental elements.
- Add Hydraulic Oil:
- Locate the oil refill port (usually a red cap).
- Remove the cap and carefully fill the reservoir with the recommended hydraulic oil. Refer to your equipment's manual for specific oil type. Do not overfill.
- Replace the oil refill cap securely.
- Nối các đường ống thủy lực:
- Connect the hydraulic line from your equipment to the oil tube connector (M18×1.5) on the pump.
- Use the provided SAE#6 adapter if necessary for compatibility.
- Đảm bảo mọi kết nối đều chặt chẽ để tránh rò rỉ.
- Kết nối nguồn điện:
- Connect the positive (+) terminal of the pump to the positive (+) terminal of a 12V DC battery (e.g., 12V 200A battery).
- Connect the negative (-) terminal of the pump to the negative (-) terminal of the battery.
- Đảm bảo các mối nối chắc chắn và không bị ăn mòn.
- Verify correct polarity to prevent damage to the motor.
- Kết nối điều khiển từ xa: Plug the remote control switch into its designated port on the pump unit.
5. Hướng dẫn vận hành
This single-acting hydraulic pump is designed for lifting applications, with gravity lowering.
- Kiểm tra trước khi vận hành: Before each use, inspect the hydraulic system for any visible leaks, damaged hoses, or loose connections. Ensure the hydraulic fluid level is adequate.
- Hoạt động nâng:
- To lift your equipment (e.g., dump bed, scissor lift), press and hold the "UP" button on the remote control switch.
- The pump will activate, and the hydraulic cylinder will extend, raising the equipment.
- Release the "UP" button once the desired height is reached.
- Lowering Operation:
- To lower your equipment, press and hold the "DOWN" button on the remote control switch.
- This action typically opens a valve, allowing gravity to lower the equipment. The pump motor does not activate during lowering.
- Release the "DOWN" button when the equipment is fully lowered or at the desired position.
- Dừng khẩn cấp: In case of an emergency, release all buttons on the remote control. If necessary, disconnect the power supply to the pump.

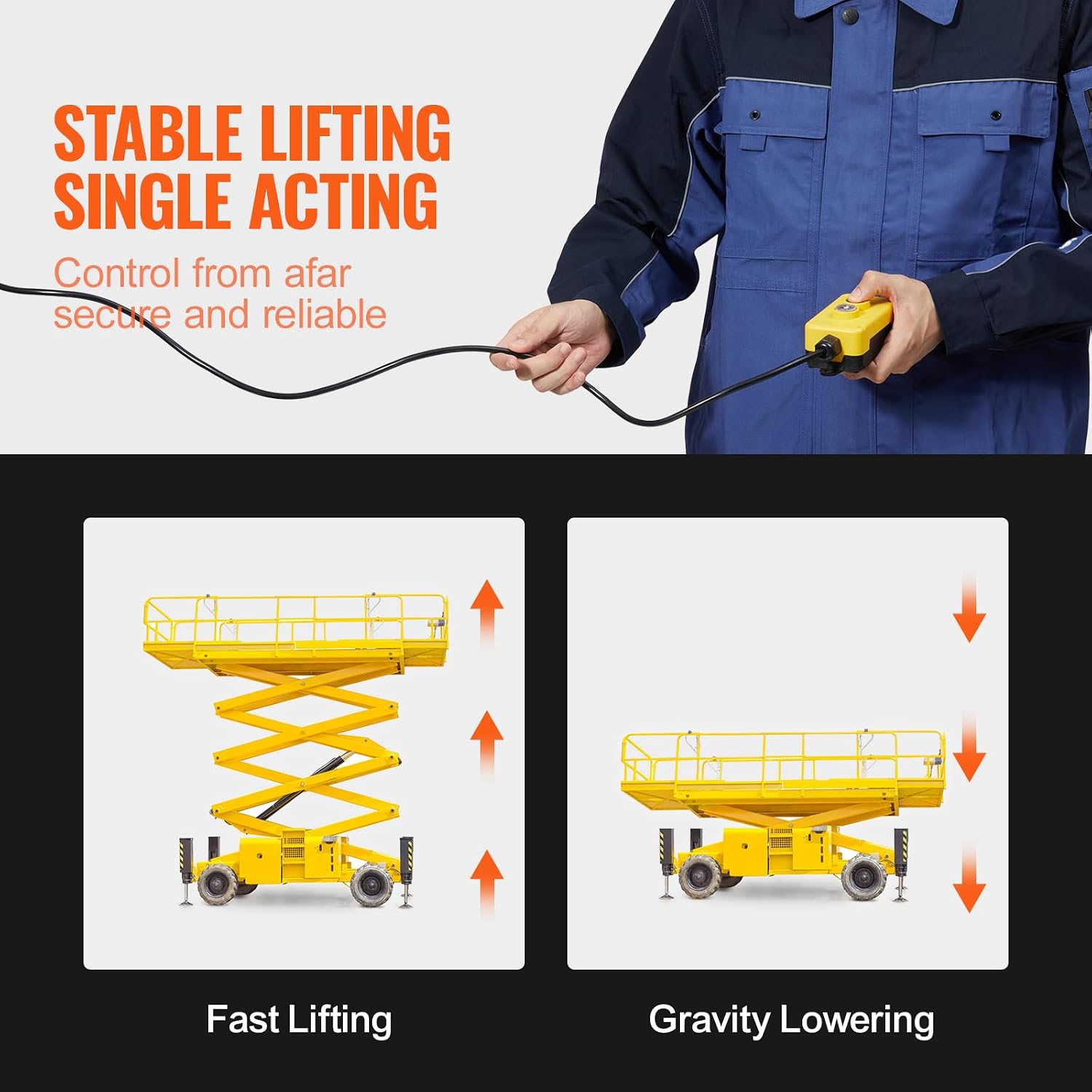

Hình 5.1: Stable Lifting and Gravity Lowering. This image illustrates the single-acting operation, showing a scissor lift being raised by the hydraulic pump and then lowered by gravity.
6. Bảo trì
Regular maintenance ensures the longevity and reliable performance of your hydraulic pump.
- Kiểm tra chất lỏng thủy lực: Check the hydraulic fluid level regularly (e.g., monthly or before heavy use). Top up if necessary with the recommended fluid.
- Bù dịch: Replace hydraulic fluid according to your equipment manufacturer's recommendations or at least annually, depending on usage.
- Kiểm tra bộ lọc: If your system includes a filter, inspect and clean or replace it as recommended to prevent contamination.
- Kiểm tra rò rỉ: Periodically inspect all hoses, fittings, and seals for leaks. Tighten connections or replace components as needed. The pump is designed with a robust seal to minimize leaks.
- Kết nối điện: Check battery terminals and wiring for corrosion or loose connections. Clean and tighten as required.
- Vệ sinh chung: Keep the pump unit clean and free from dirt, debris, and moisture.
KHAI THÁC. Xử lý sự cố
Tham khảo bảng sau để biết các vấn đề thường gặp và giải pháp:
| Vấn đề | Nguyên nhân có thể | Giải pháp |
|---|---|---|
| Pump does not operate. | No power supply, loose electrical connections, faulty remote switch, low battery. | Check battery charge and connections. Inspect remote switch wiring. Ensure power is connected. |
| Slow or weak lifting. | Low hydraulic fluid level, air in the system, clogged filter, worn pump components, low battery voltage. | Check and refill hydraulic fluid. Bleed air from the system. Inspect/replace filter. Check battery voltage. |
| Hydraulic fluid leaks. | Loose fittings, damaged hoses, worn seals. | Tighten all connections. Inspect hoses and seals; replace if damaged. |
| Equipment does not lower. | Faulty lowering valve, obstruction. | Check the lowering valve for proper function. Inspect for any physical obstructions. |
| Pump motor runs but no lift. | Low fluid, air in system, relief valve stuck open, internal pump failure. | Check fluid level. Bleed air. Inspect relief valve. Contact qualified technician if internal failure is suspected. |
If you encounter problems not listed here or if the suggested solutions do not resolve the issue, contact VEVOR customer support or a qualified hydraulic technician.
8. Thông số kỹ thuật
The following table details the technical specifications of the VEVOR ZXDC12V-1.6KW-D-12L hydraulic pump:
| Đặc điểm kỹ thuật | Giá trị |
|---|---|
| Số hiệu mẫu | ZXDC12V-1.6KW-D-12L |
| Tậptage | Điện áp một chiều 12V |
| Kiểu | Diễn xuất đơn |
| Sức chứa hồ chứa | 12 Quart / 3 Gallons / 11 L |
| Áp suất tối đa | 3200 psi / 22 MPa |
| Quyền lực | 1.6kW |
| Traffic (Displacement) | 1.1 mL/r |
| Tốc độ dòng chảy | 0.91 GPM (3.44 L / phút) |
| Tốc độ quay | 2600 vòng/phút |
| Vật liệu | Steel (GC01) |
| Trọng lượng tịnh | 31.4 pound / 14.25 kg |
| Kích thước sản phẩm (D x R x C) | 21.9 × 7.9 × 9 inches / 557 × 200 × 228 mm |
| Các thành phần bao gồm | 1 x Hydraulic Pump, 1 x SAE#6 Adapter |
Hình 8.1: Detailed Specifications. This image provides a visual representation of the key specifications, including model number, weight, dimensions, voltage, reservoir capacity, power, flow rate, and speed.
9. Bảo hành và Hỗ trợ
Sản phẩm VEVOR được thiết kế để đảm bảo độ bền và hiệu suất. Để biết thông tin bảo hành, hỗ trợ kỹ thuật hoặc yêu cầu dịch vụ, vui lòng tham khảo thẻ bảo hành đi kèm với sản phẩm hoặc truy cập trang web chính thức của VEVOR. website. Please have your model number (ZXDC12V-1.6KW-D-12L) and purchase date available when contacting support.
VEVOR chính thức Webđịa điểm: www.vevor.com
