Giới thiệu
This manual provides instructions for the safe and efficient use of your BM Premium EN-EL14A rechargeable batteries and dual bay charger. Please read this manual thoroughly before use and retain it for future reference. This product is designed for use with compatible Nikon D-series and Coolpix cameras.
Thông tin an toàn quan trọng
Hãy tuân thủ các biện pháp phòng ngừa an toàn sau đây để tránh làm hư hỏng sản phẩm hoặc gây thương tích cho bản thân:
- Không làm ngắn mạch các cực của pin.
- Không vứt pin vào lửa.
- Charge batteries only with the specified BM Premium dual bay charger or compatible charging devices.
- Keep batteries and charger away from water and excessive heat.
- Do not disassemble or modify the batteries or charger.
- The charger is built with multiple circuit protections including over-charging, short-circuit, high-temperature, and surge protection.
- The charger features high-quality, fire-resistant construction.
Cài đặt
Tháo dỡ
Cẩn thận lấy tất cả các bộ phận ra khỏi bao bì. Đảm bảo bạn có những vật dụng sau:
- BM Premium EN-EL14A Batteries (2x)
- BM Premium Dual Bay USB Charger
- Dây nguồn USB
Kết nối bộ sạc
- Connect the provided USB power cord to the micro-USB input port on the dual bay charger.
- Plug the other end of the USB power cord into a compatible USB power source. This can be a USB wall charger, a car charger, or an external power bank. (Adapters and power bank are sold separately).
Hướng dẫn sử dụng

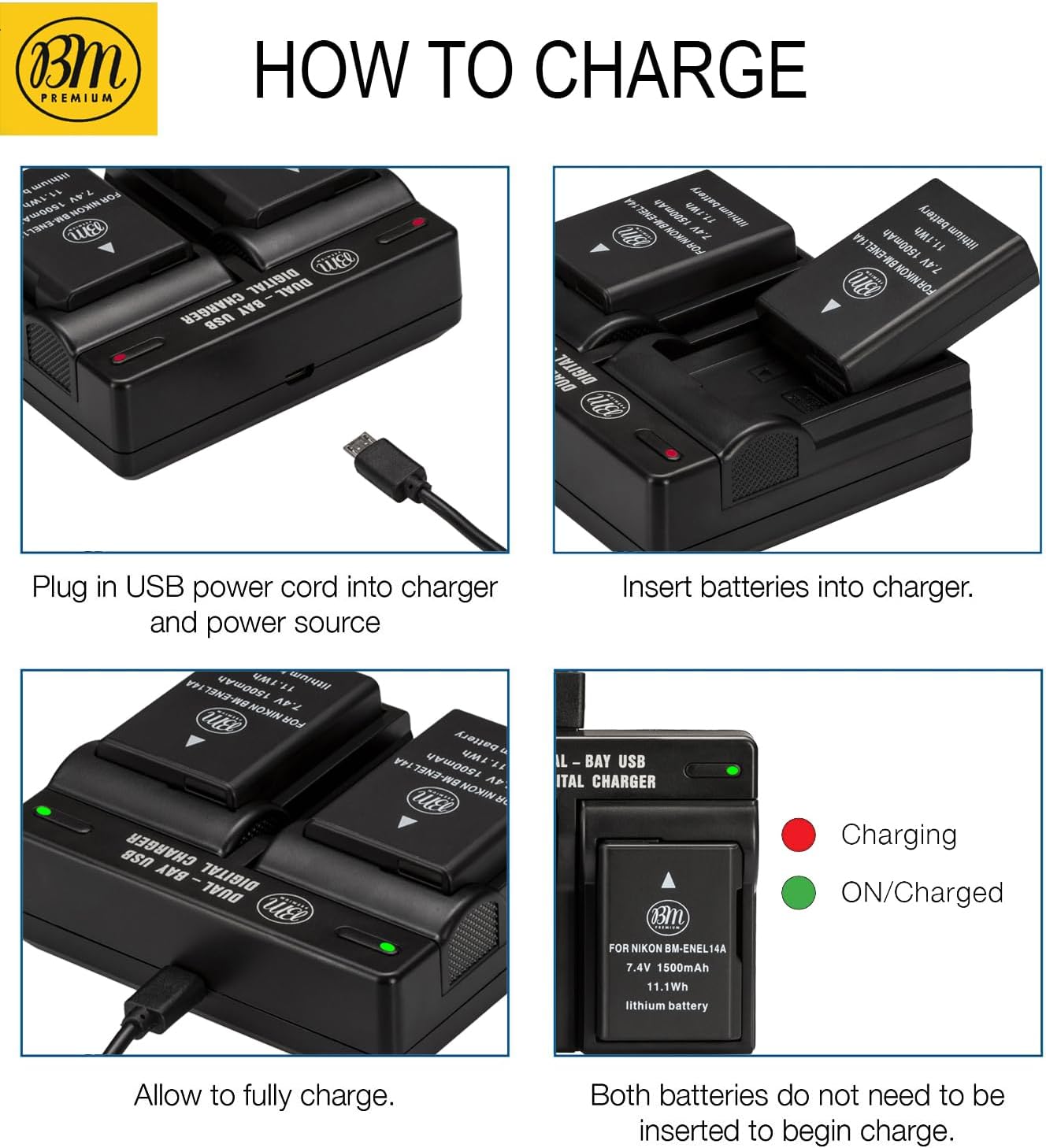

Sạc pin
- Ensure the charger is connected to a power source as described in the Setup section.
- Insert one or two EN-EL14A batteries into the charging bays. Ensure the battery contacts align correctly with the charger terminals.
- The smart LED indicator light above each bay will turn màu đỏ to indicate that charging is in progress.
- When the battery is fully charged, the corresponding LED indicator light will turn màu xanh lá.
- Remove the batteries once charging is complete. Both batteries do not need to be inserted to begin charging; you can charge one at a time.
Using Batteries with Your Camera
Refer to your camera's instruction manual for specific details on inserting and removing the battery. Generally, open the battery compartment, insert the EN-EL14A battery with the correct orientation, and close the compartment securely.
Bảo trì và chăm sóc
Chăm sóc pin
- The EN-EL14A batteries are memory-free, allowing you to charge them at any time without affecting their capacity.
- Bảo quản pin ở nơi khô ráo, thoáng mát khi không sử dụng.
- Tránh để pin tiếp xúc với nhiệt độ quá cao hoặc quá thấp.
- If a battery will not be used for an extended period, charge it to approximately 50% before storage.
Chăm sóc bộ sạc
- Keep the charger clean and free from dust. Use a soft, dry cloth for cleaning.
- Không sử dụng chất tẩy rửa dạng lỏng hoặc dung môi.
- Ensure the charging contacts are clean and free of debris for optimal performance.
Xử lý sự cố
- Đèn LED trên bộ sạc không sáng:
- Ensure the USB power cord is securely connected to both the charger and the power source. Verify that the power source is active.
- Battery not charging (LED remains off or flashes unexpectedly):
- Remove and re-insert the battery, ensuring proper alignment. Check for any obstructions on the battery or charger contacts. Try charging a different battery if available to isolate the issue.
- Camera displays a 'battery not compatible' error:
- Ensure the battery is fully inserted and the battery compartment door is closed. While these batteries are designed for full compatibility, some camera firmware versions may occasionally display warnings. If the camera functions normally despite the warning, the battery is likely working correctly. If the camera does not power on, try re-inserting the battery or using a different battery.
- Thời lượng pin ngắn:
- Ensure batteries are fully charged before use (green LED). Battery performance can be affected by extreme temperatures or prolonged heavy use. Over time, all rechargeable batteries experience a gradual decrease in capacity.
Thông số kỹ thuật
EN-EL14A Battery
- Kiểu: Pin Lithium-Ion
- Khả năng lưu trữ năng lượng: 1500mAh
- Tậptage: 7.4 vôn
- Watt-giờ (Wh): 11.1Wh
- Chip: Fully decoded, functions like original battery (displays time left).
Dual Bay USB Charger
- Đầu vào: Micro-USB (2.1A recommended for optimal charging speed)
- Khả năng sạc: Charges 1 or 2 batteries simultaneously.
- Các chỉ số: Smart LED (Red for charging, Green for complete).
- Sự bảo vệ: Over-charging, short-circuit, high-temperature, surge protection.
- Sự thi công: High-quality, fire-resistant.
Khả năng tương thích
The BM Premium EN-EL14A batteries and charger are compatible with the following Nikon camera models:
- Nikon D3100, D3200, D3300, D3400, D3500
- Nikon D5100, D5200, D5300, D5500, D5600
- Nikon DF
- Nikon Coolpix P7000, P7100, P7700, P7800
Thông tin bảo hành
For detailed warranty information regarding your BM Premium EN-EL14A batteries and dual bay charger, please refer to the official BM Premium website or contact customer support. Warranty terms and conditions may vary.
Hỗ trợ khách hàng
If you encounter any issues or have questions not covered in this manual, please contact BM Premium customer support for assistance. Contact information can typically be found on the product packaging or the official BM Premium webđịa điểm.
